Double fiber DFB Receptacle 1310nm LC TOSA High speed long distance with isolator
Model · LC TOSA
This product is a long-distance high-speed light emitting module.
- Wavelength
- 1310nm
- Package
- RECEPTACLE / TOSA
- Interface
- LC

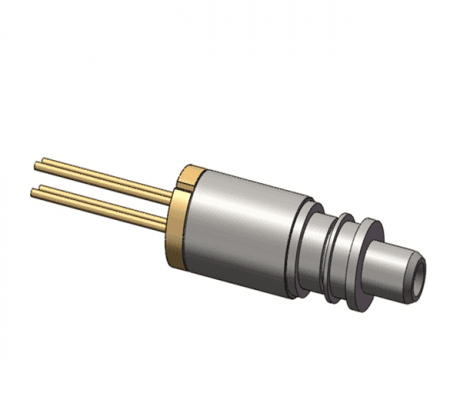

Showing image 1 of 2: Double fiber DFB Receptacle 1310nm LC TOSA High speed long distance with isolator
Product overview
Type:Laser Diode
Package Type:Receptacle
- This product is a long-distance high-speed light emitting module
- Start with DFB laser
- Chip information: LD: According to customer requirements
- Product structure remarks: LC/PC ferrule assembly, machined/powder structure, with isolator
Standard
- Single package size: 46X31X29 cm
- Single gross weight:5.0 kg
Package Type:
The outer box specification is 460*305*290mm, and each box can hold up to 640 products. 80 products are packed in 8 stacked; 8 anti-static trays can be loaded into 80 products.
Key features
- Laser welding solution
- Transmission rate is 155M, 1.25G, 2.5G
- High optical isolation
- Working temperature: 0°C~75°C
- Receptacle LC TOSA
Product details
- Model Number
- LC TOSA
- Supply Ability
- 50K PCS/Month
- Packaging Details
- - Selling Units:Single item
Specifications
Specification5 rows · Technical specifications
Scroll horizontally to view all columns
| Parameter | Rating |
|---|---|
| Max. Forward Voltage | 2V |
| Max. Reverse Voltage | 15V |
| Max. Forward Current | 10mA |
| Max. Reverse Current | 150mA |
| Wavelength | 1310nm |
Absolute Maximum Ratings5 rows · Absolute maximum ratings
Scroll horizontally to view all columns
| Item | Symbol | Unit | Min | Max |
|---|---|---|---|---|
| Storage Temperature | Tstg | ℃ | -40 | +85 |
| Operating Temperature（ambient） | TOPR | ℃ | -40 | +85 |
| Lead Soldening Temperature(Max10 sec) | Ts | ℃ | — | 260 |
| Forward Current(LD) | IPLD | mA | — | 140 |
| Reverse Voltage(LD) | VRLD | V | — | 2 |
Applications
- Remote communication
Standards & compliance
- Compliant with GR - 326 connector eligibility criteria
- Compliant with Telcordia GR-468 reliability test criterion
- Compliant with RoHS6 standard
Custom engineering
Need a different optical or mechanical configuration?
Share the target wavelength, output or sensitivity, package, connector or pigtail, temperature range, screening, quantity, and schedule for an engineering review.
