TOSA

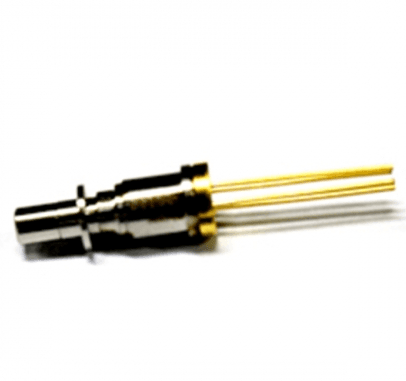

Digital 1310nm DFBFP 10G TOSA with Receptacle

Model · DTNT-TOSA

The product is a 1310nm wavelength / operating rate 10.3125Gb / s light emission module.

Wavelength: 1310nm
Data rate: 10G
Package: TOSA / RECEPTACLE

Product overview

Type:Laser Diode

Package Type:Receptacle

The product is a 1310nm wavelength / operating rate 10.3125Gb / s light emission module
Start with DFB/FP laser

Chip information:

LD: 1310nm 10.3125Gpbs DFB/FP 4PIN

Product structure remarks: LC/PC insulated ferrule assembly, machined / powder structure, with isolator (or without)

Standard

Single package size: 46X31X29 cm
Single gross weight:5.0 kg

Package Type:

The outer box specification is 460*305*290mm, and each box can hold up to 640 products. 80 products are packed in 8 stacked; 8 anti-static trays can be loaded into 80 products.

Key features

Laser welding solution
Uplink rates are 10.3125G
High optical isolation
Working temperature: -40 ° C ~ 85 ° C
Receptacle LC TOSA

Product details

Model Number: DTNT-TOSA
Supply Ability: 50K PCS/Month
Packaging Details: - Selling Units:Single item

Specifications

Specification4 rows · Technical specifications

Scroll horizontally to view all columns

Specification for Digital 1310nm DFBFP 10G TOSA with Receptacle
Parameter	Rating
Max. Reverse Voltage	2V
Max. Forward Current	140mA
Wavelength	1310nm
Connector	SC FC ST

Applications

Remote communication

Standards & compliance

Compliant with GR - 326 connector eligibility criteria
Compliant with Telcordia GR-468 reliability test criterion
Compliant with RoHS6 standard

Custom engineering

Need a different optical or mechanical configuration?

Share the target wavelength, output or sensitivity, package, connector or pigtail, temperature range, screening, quantity, and schedule for an engineering review.

Send the requirement
