TOSA

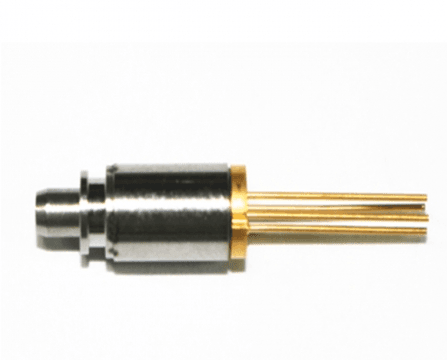

Digital Double Fiber DFBFP 1310nm 155M 1.25G 2.5G LC TOSA with Receptacle

Model · DTNT-TOSA-LC

The product is a 1310nm wavelength / working rate 1.25Gb / s optical emission module.

Wavelength: 1310nm
Data rate: 155M / 1.25G / 2.5G
Package: TOSA / RECEPTACLE
Interface: LC

Product overview

Type:Laser Diode

Package Type:Receptacle

The product is a 1310nm wavelength / working rate 1.25Gb / s optical emission module
Start with DFB/FP laser

Chip information:

LD: 1310nm 155M, 1.25G, 2.5G DFB/FP 4PIN

Product structure remarks: LC/PC ferrule assembly, machined / powder structure, without isolator

Standard

Single package size: 46X31X29 cm
Single gross weight:5.0 kg

Package Type:

The outer box specification is 460*305*290mm, and each box can hold up to 640 products. 80 products are packed in 8 stacked; 8 anti-static trays can be loaded into 80 products.

Key features

Laser welding solution
Transmission rate is 155M, 1.25G, 2.5G
High optical isolation
Working temperature: 0°C~75°C
Receptacle LC TOSA

Product details

Model Number: DTNT-TOSA-LC
Supply Ability: 50K PCS/Month
Packaging Details: - Selling Units:Single item

Specifications

Specification3 rows · Technical specifications

Scroll horizontally to view all columns

Specification for Digital Double Fiber DFBFP 1310nm 155M 1.25G 2.5G LC TOSA with Receptacle
Parameter	Rating
Max. Reverse Voltage	2V
Max. Forward Current	140mA
Wavelength	1310nm

Applications

Remote communication

Standards & compliance

Compliant with GR - 326 connector eligibility criteria
Compliant with Telcordia GR-468 reliability test criterion
Compliant with RoHS6 standard
