XGSPON 10G ONU BOSA
BOSA
This ONU BOSA uses a 1270nm DFB transmitter and a 1577nm APD-TIA receiver. It has an SC/APC pigtail. Review the separate transmitter and receiver tables for operating limits and test conditions.
- Wavelength
- 1270nm / 1577nm
- Data rate
- 10G / 9.95G / 10.3125G
- Package
- BOSA / PIGTAIL
- Interface
- SC/APC

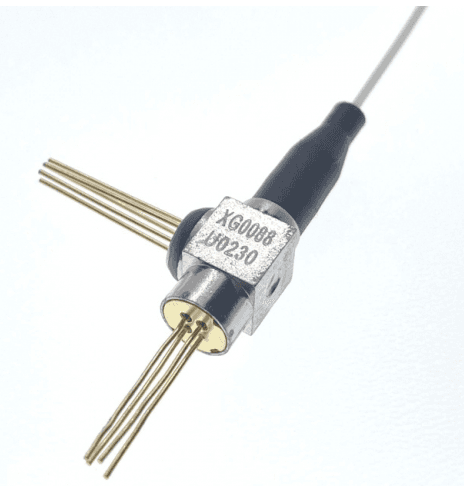

Showing image 1 of 2: XGSPON 10G ONU BOSA
Product overview
- 9.95Gbps/10.3125Gbps Tx 1270nm DFB LD/Rx 1577nm integrated WDM filter Pigtail 5 Pin BOSA
- The Case is isolator with the GND PIN of APD-TIA
- Compliant the with ROHS (Restriction on Hazardous Substance) standard
- Compliant the MIL-STD-883E
Transmitter Optical And Electrical Characteristics
(Unless specified else，the specifications below are defined at TC=0-85℃ )
Receiver Optical and Electrical Characteristics
(Unless specified else，the specifications below are defined at TC=0-85℃ )

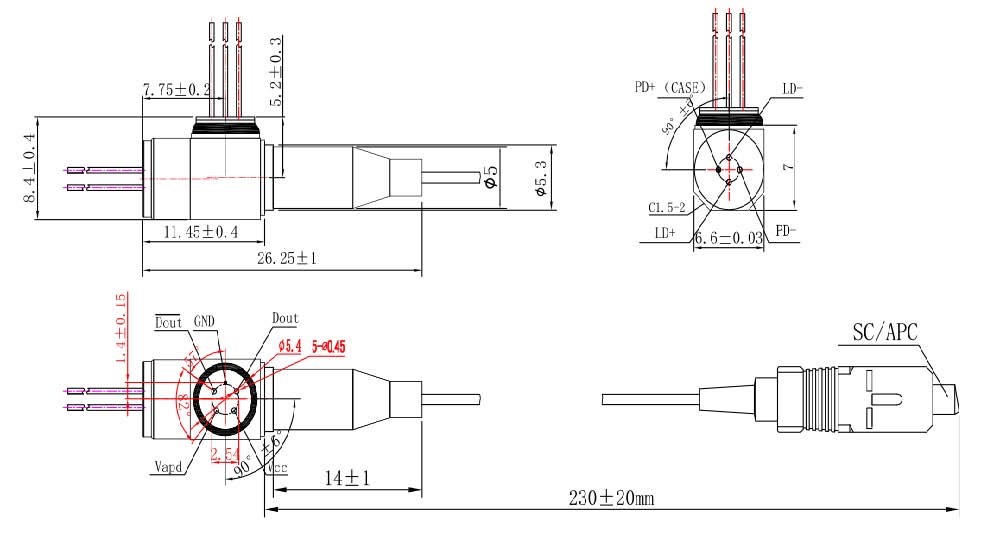

Structure
Note: mm. tolerance ±0.05mm
Key features
- DFB uncooled laser diode
- High sensitive APD-TIA
- SC/APC Pigtail
- Support Industrial temperature
Specifications
ABSOLUTE MAXIMUM RATINGS(Tc=0-85°C unless otherwise noted)
7 rows · Absolute maximum ratings
Scroll horizontally to view all columns
| Parameter | Symbol | Min. | Max. | Unit |
|---|---|---|---|---|
| Storage Temperature | Tstg | -40 | 85 | ℃ |
| Operating Case Temperature | Top | 0 | 85 | ℃ |
| Reverse Voltage(LD) | VRL | — | 2 | V |
| Reverse Voltage(MPD) | VRD | — | 15 | V |
| Photodiode Forward Current(MPD) | IFD | — | 10 | mA |
| Forward Current(LD) | IFL | — | 150 | mA |
| Lead Soldering (Temperature)/(Time) | — | — | 260/10 | ℃/Sec |
Transmitter Optical And Electrical Characteristics (Unless specified else，the specifications below are defined at TC=0-85℃ )
12 rows · Electrical / optical characteristics
Scroll horizontally to view all columns
| Parameter | Symbol | Symbol | Min. | Typ. | Max. | Unit | Note |
|---|---|---|---|---|---|---|---|
| Output Optical Power | Pf | 2.8 | — | 5.0 | mW | CW, Iop= Ith+20mA | |
| Threshold Current | Ith | — | 8 | 15 | mA | CW,Tc=25℃ | |
| Threshold Current | Ith | — | — | 45 | mA | CW, Tc=0~85℃ | |
| Center Wavelength | λc | 1260 | 1270 | 1280 | nm | CW, Iop=Ith+20mA Tc=0~85℃ | |
| Side Mode Suppression Ratio | SMSR △ | 35 | — | — | dB | CW, Pop=Ith+20mA | |
| Spectrum Width (-20dB) | λ | — | — | 1.0 | nm | CW, Pop=Ith+20mA | |
| Operating Voltage | Vop | — | 1.2 | 1.7 | V | CW, Iop=Ith+20mA | |
| Monitor Current | Imon | 0.1 | — | 1.0 | mA | DC, Iop=Ith+20mA, | |
| Rise/Fall time | Tr/Tf | — | — | 50 | ps | 20%-80% | |
| Monitor Dark Current | Id | — | — | 100 | nA | Vrd=5V | |
| PD Capacitance | Ct | — | 5 | 7 | pF | Vrd=5V@1MHz | |
| Tracking Error | TE | -1.5 | — | 1.5 | dB | APC, 0℃/+25℃, +25℃/+85℃ | |
Receiver Optical and Electrical Characteristics(Unless specified else，the specifications below are defined at TC=0-85℃ )
12 rows · Electrical / optical characteristics
Scroll horizontally to view all columns
| Parameter | Symbol | Min. | Typ. | Max. | Unit | Condition |
|---|---|---|---|---|---|---|
| Operating Wavelength | λ | 1575 | 1577 | 1580 | nm | — |
| Supply Voltage | Vcc | 3.0 | 3.3 | 3.6 | V | — |
| TIA Supply Current | Icc | — | 27 | 45 | mA | Vcc=3.3V |
| Sensitivity | Sen | — | — | -30 | dBm | λ=1577nm , 9.95Gbps/10.3125Gbps PRBS=2^31-1, ER≥6dB,BER≤10-3, Vbr-3V，CW |
| Breakdown voltage | Vbr | 25 | 33 | 45 | V | I=10uA |
| Overload Power | Pol | -7 | — | — | dBm | λ=1577nm , 9.95Gbps/10.3125Gbps PRBS=2^31-1, ER≥6dB,BER≤10-3, Vbr-3V，CW |
| Optical Return Loss | ORL | — | — | -20 | dB | λ=1577nm |
| Optical Crosstalk From Internal Laser | Xopt | — | — | -40 | dB | 1270nm/1570nm |
| Dark Current | ld | — | — | 100 | nA | TC =25℃ |
| Rx filter specification@1260~1560nm | Isolation | 35 | — | — | dB | 1260~1560nm |
| Rx filter specification@1595~1660nm | Isolation | 35 | — | — | dB | 1595~1660nm |
| Rx filter specification@1575~1580nm | Isolation | — | — | 0.35 | dB | 1575~1580nm |
