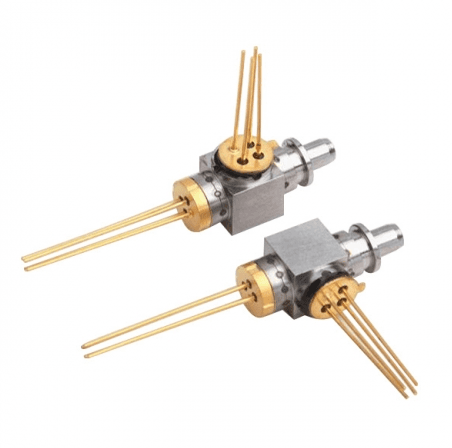

10G BOSA 1.25Gbps Tx 1310nm /10G Rx 1577nm BOSA

1.25Gbps Tx 1310nm DFB LD/10Gbps Rx 1577nm integrated WDM filter SC 5 Pin BOSA. Suitable for Ethernet in the First Mile and point-to-point applications.

Wavelength: Tx 1310nm / Rx 1577nm
Data rate: 1.25G Tx / 10G Rx
Package: BOSA
Interface: SC

Product overview

1.25Gbps Tx 1310nm DFB LD/10Gbps Rx 1577nm integrated WDM filter SC 5 Pin BOSA
The Case is isolator with the GND PIN of APD-TIA
Suitable for Ethernet in the First Mile and point-to-point applications
Compliant the with ROHS (Restriction on Hazardous Substance) standard
Compliant the MIL-STD-883E

Note 1: The Slope efficiency drop is the slope efficiency will be decreased with the temperature increasing.

Note 2: The center wavelength and Side-mode suppression ratio should be tested under modulated conditions using 1.25Gbps, PRBS331-1, ER=9dB. optical power should between 0.6dBm to 4dBm.

Note 3: RIN12OMA is the ratio of noise to modulated optical signal in the presence of a back reflection.

Where:

RINxOMA=Relative Intensity Noise referred to optical modulation amplitude measured with x dB reflection,

PN=Electrical noise power in Watts with modulation off,

PM=Electrical power in Watts with modulation on,

BW=Low pass bandwidth of apparatus-high pass bandwidth of apparatus due to DC blocking capacitor [noise bandwidth of the measuring system(Hz)].

Note 4: Tracking Error ( A is Typical AOP ):

Note 5: Linearity is calculated by first determining slope between several sequential pair of points on power/current curve Lh= (max(h1, h2 .....hi) - min(h1, h2.....hi))/ have , hi = Ipd / Pin (Pin=-30~0dBm).

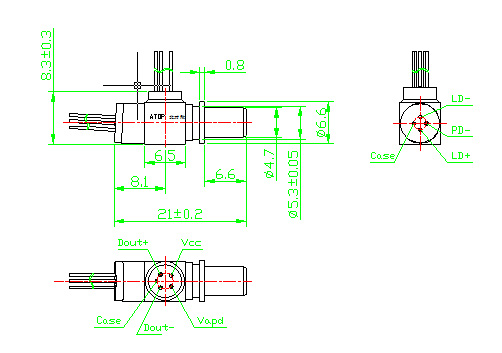

MECHANICAL& PIN DESCRIPTION REQUIREMENT

10G BOSA 1.25Gbps Tx 1310nm /10G Rx 1577nm BOSA detail 1

TEST REPORT IN sample

Minimum Required Values Results per Individual

Specifications

ABSOLUTE MAXIMUM RATINGS10 rows · Absolute maximum ratings

Scroll horizontally to view all columns

ABSOLUTE MAXIMUM RATINGS for 10G BOSA 1.25Gbps Tx 1310nm /10G Rx 1577nm BOSA
Parameter	Symbol	Min.	Max.	Unit
Storage Temperature	T_STG	-40	+85	℃
Operating Temperature (ambient)	T_OPR	-40	+85	℃
Supply Voltage V	V_CC	-0.5	4.5	V
Lead Soldering Temperature (Max10 sec)	T_S	---	260	℃
Forward Current (LD)	I_FLD	---	150	mA
Reverse Voltage (LD)	V_RLD	---	2	V
Forward Current (MPD) IFPD 2 mA	I_FMPD	---	2	mA
Reverse Voltage (MPD)	V_RMPD	---	20	V
Forward Current (PD) IFPD 2 mA	I_FPD	---	10	mA
Reverse Voltage (PD)	V_RPD	---	20	V

MELECTRIC AND OPTICAL CHARACTERISTICS36 rows · Electrical / optical characteristics

Scroll horizontally to view all columns

MELECTRIC AND OPTICAL CHARACTERISTICS for 10G BOSA 1.25Gbps Tx 1310nm /10G Rx 1577nm BOSA
Parameter	Symbol	Min.	Typ.	Max.	Unit	Condition
Transmitter
Threshold Current	I_TH	---	8	15	mA	T_C=25℃
Threshold Current	ITH	---	---	40	mA	T_C= -40~85℃,
Forward Voltage	V_F	---	1.2	1.5	V	P_F=P_F (Min), T_C =25℃
Optical Output power	P_f	1.8	—	4	mW	CW, @I_TH+20mA, 25℃, kink free
Optical Output power	P_f	1	—	%	—	CW, @I_TH+20mA, 85℃
Center Wavelength (Note 2)	λ_C	1260	—	1360	nm	CW, T_C=-40~85℃
Spectral Width (-20dB) (Note 2)	Δλ	—	---	1	nm	CW, @I_TH+20mA
Side-mode suppression ratio(Note1)	SMSR	35	—	—	dB	T_C=-40~85℃
Rise/Fall Time	T_R/T_F	---	—	150	ps	P_F=2.0mW, Extinction Ratio > 9dB, 20%-80%, without filter
Relative Intensity Noise(Note3)	RIN₁₂ (OMA)	120	—	—	dB/Hz	—
Monitor Current	I_M	100	---	900	uA	CW,P_f=Ith+20mA, V_RMPD=1.5V, Tc=25C,
Monitor Dark Current	I_DARK	---	---	0.1	uA	V_RMPD=10V
PD Capacitance	C_PD	---	10	15	pF	V_RMPD=10V,f=1MHz
Optical Return Loss tolerance	O_RLT	---	---	12	dB	Tested at 1310nm
Tracking Error(Note 4)	ΔP_f/P_f	-1	---	+1	dB	-40~85℃, CW, P_f (Ith+20mA)@I_M hold (Note 5)
Plug Repeatability	—	-0.5	—	+0.5	dB	Same fiber test 10 times, maximum- minimum
Plug Re-changeability	—	-1	—	1	dB	3 different fiber, each fiber test 10 time, maximum- minimum
Receiver
Supply Current	I_CC	---	---	70	mA	No loads
Operation Wavelength	λ	1575	1577	1580	nm	—
Saturation Power	P_SAT	-8	---	---	dBm	Tc=-40~85℃ (Test at 10.3125Gbps PRBS31 ER=6dB BER<10E-3)
Sensitivity	Sen	---	—	-29.5	dBm	Tc=-40~85℃ (Test at 10.3125Gbps PRBS31 ER=6dB BER<10E-3)
Responsibility	Res	0.8	—	—	A/W	λ=1577nm
Output Resistance	R_OUT	45	50	55	Ω	Single Ended
Upper -3dB Bandwidth	BW	---	6.5	—	GHz	—
Rise/Fall time	t_R,t_F	—	—	65	ps	20%~80% at 50Ω
Optical Return Loss	ORL	20	---	---	dB	λ=1577nm
Linearity(Note 5)	L_η	---	---	---	—	P_in =Senstivity~OL
Dark current of monitor	I_D	—	—	100	nA	V_PD=3.3V Tc=-40~85℃
Accuracy of Monitor	AccMON	—	—	—	%	Tc=-40~85℃
Optical Crosstalk	X_TALK	40	---	—	dB	1310nm/1577nm
WDM Filter Isolation	ISO(1310)	40	—	—	dB	—
WDM Filter Isolation	ISO(1550)	38	—	—	dB	—
WDM Filter Isolation	ISO(1650)	35	—	—	dB	—
ESD Requirement	ESD	500	—	—	V	—

Tx Test Condition: Tc=-5, 25,75℃4 rows · Test data

Scroll horizontally to view all columns

Tx Test Condition: Tc=-5, 25,75℃ for 10G BOSA 1.25Gbps Tx 1310nm /10G Rx 1577nm BOSA
Column 1	Column 2	Column 3	Column 4	Column 5	Column 6	Column 7	Column 8	Column 9	Column 10
Tx Test Condition: Tc=-5, 25,75℃
S/N	Ith	Pf	Im	Wavelength	Spectral Width	SMSR	Kink	LIV curve	Rise/Fall Time
S/N	CW	Ith+20mA	2.0mw	—	(-20dB)	—	—	—	20%~80%
S/N	(mA)	(mW)	(uA)	(nm)	(nm)	dB	(%)	—	(ps)

Rx Test Condition: Tc=-5, 25,75℃4 rows · Test data

Scroll horizontally to view all columns

Rx Test Condition: Tc=-5, 25,75℃ for 10G BOSA 1.25Gbps Tx 1310nm /10G Rx 1577nm BOSA
Column 1	Column 2	Column 3	Column 4	Column 5	Column 6	Column 7	Column 8
Rx Test Condition: Tc=-5, 25,75℃
S/N	Sensitivity	Overload	Mon Idark	Icc	Linearity	Optical X-talk	Rise/Fall Time
S/N	10.3125G PRBS31 ER=6dB BER<10E-3		No load		-30~-8dBm	1577nm/1310nm	20%~80%
S/N	(dBm)	(dBm)	(uA)	(mA)	%	dB	(ps)
