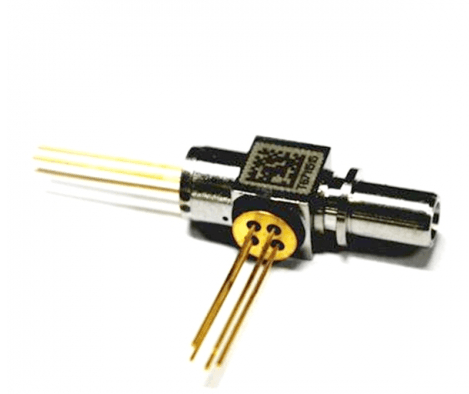

Name: 10G XGPON Digital DFB Up1270nm Down 1577nm10G XGSPON symmetry ONU BOSA with Receptacle
Brand: DTNT
SKU: X GSPON ONU BOSA

Product overview

Type: Laser Diode+photo diode

Package Type: Receptacle

ONU BOSA with an upstream 1270 wavelength/operating rate of 10.3125Gbps, and a downstream 1577nm operating rate of 10G.
The DFB laser is used at the origin, and the APD-TIA diode is used at the receiving end.

Chip information:

LD: 1270nm 10.3125 DFB 4PIN

PT: 10.3125Gbps APD-TIA

Product structure remarks: SC/PC ferrule assembly, machining/powder structure, receiving end adhesive structure, with isolator

Standard

Packaging & Delivery

Selling Units:Single item
Single package size: 46X31X29 cm
Single gross weight:5.0 kg

Package Type:

The outer box specification is 460*305*290mm, and each box can hold up to 640 products. 80 products are packed in 8 stacked; 8 anti-static trays can be loaded into 80 products.

Key features

Laser welding solution
Point-to-point application
High optical isolation
Working temperature: 0°C~70°C
Receptacle SC BOSA

Product details

Model Number: X GSPON ONU BOSA
Supply Ability: 50K PCS/Month

Specifications

Specification5 rows · Technical specifications

Scroll horizontally to view all columns

Specification for 10G XGPON Digital DFB Up1270nm Down 1577nm10G XGSPON symmetry ONU BOSA with Receptacle
Parameter	Rating
Max. Forward Voltage	2V
Max. Reverse Voltage	20V
Max. Forward Current	10mA
Max. Reverse Current	150mA
Wavelength	Up 1270nm Down 1577nm

Applications

Remote communication
Point to point communication

Standards & compliance

Compliant with GR - 326 connector eligibility criteria
Compliant with Telcordia GR-468 reliability test criterion
Compliant with RoHS6 standard

Custom engineering

Need a different optical or mechanical configuration?

Share the target wavelength, output or sensitivity, package, connector or pigtail, temperature range, screening, quantity, and schedule for an engineering review.
