XGSPON Pigtailed (compatible with 10G EPON symmetry) ONU BOSA
9.95Gbps/10.3125Gbps Tx 1270nm DFB LD/Rx 1577nm integrated WDM filter Pigtail 5 Pin BOSA.
- Wavelength
- 1270nm / 1577nm
- Data rate
- 10G / 9.95G / 10.3125G
- Package
- BOSA / PIGTAIL

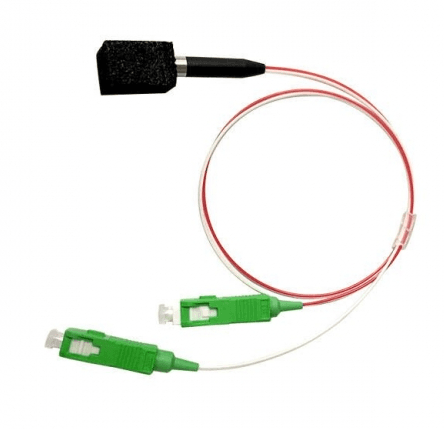

Showing image 1 of 3: XGSPON Pigtailed (compatible with 10G EPON symmetry) ONU BOSA
Product overview
- 9.95Gbps/10.3125Gbps Tx 1270nm DFB LD/Rx 1577nm integrated WDM filter Pigtail 5 Pin BOSA
- The Case is isolator with the GND PIN of APD-TIA
- Compliant the with ROHS (Restriction on Hazardous Substance) standard
- Compliant the MIL-STD-883E
Transmitter Optical And Electrical Characteristics
(Unless specified else，the specifications below are defined at TC=0-85℃)
(Unless specified else，the specifications below are defined at TC=0-85℃)

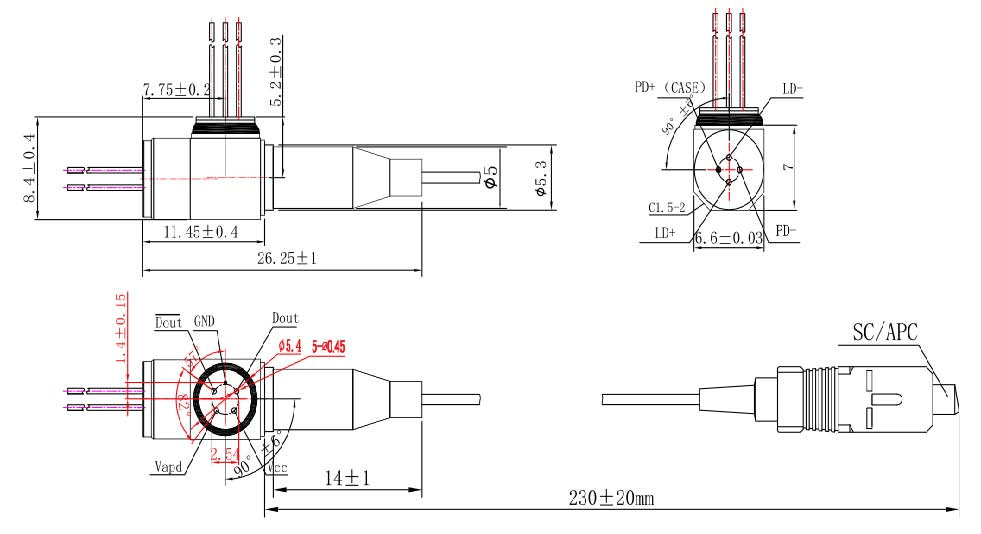

Product structure outline drawing
Note: he transmitting end adopts laser welding process..
Key features
- DFB uncooled laser diode
- High sensitive APD-TIA
- SC/APC Pigtail
- Support Industrial temperature
Specifications
Absolute Maximum ratings(Tc=25℃,unless otherwise noted)7 rows · Absolute maximum ratings
Scroll horizontally to view all columns
| Parameter | Symbol | Min. | Max. | Unit |
|---|---|---|---|---|
| Storage Temperature | Tstg | -40 | 85 | ℃ |
| Operating Case Temperature | Top | 0 | 85 | ℃ |
| Reverse Voltage(LD) | VRL | — | 2 | V |
| Reverse Voltage(MLD) | VRD | — | 15 | V |
| Photodiode Forward Current(MPD) | IFD | — | 10 | mA |
| Forward Current(LD) | IFL | — | 150 | mA |
| Lead Soldering(Temperature)/(Time) | - | — | 260/10 | ℃/Sec |
Transmitter Optical And Electrical Characteristics(Unless specified else，the specifications below are defined at TC=0-85℃)12 rows · Electrical / optical characteristics
Scroll horizontally to view all columns
| Parameter | Symbol | Min. | Typ. | Max. | Unit | Note |
|---|---|---|---|---|---|---|
| Output Optical Power | Pf | 2.8 | — | 5 | mW | CW,lop=lth+20mA |
| Threshold Current | lth | — | 8 | 15 | mA | CW,Tc=25℃ |
| — | — | — | — | 45 | mA | CW,Tc=0~70℃ |
| Center Wavelenth | — | — | — | — | — | — |
| Side Mode Suppression Ratio | SMSR | 35 | — | — | dB | CW,pop=lth+20mA |
| Spectrum Width(-20dB) | Δλ | — | — | 1 | nm | CW,pop=lth+20mA |
| Operating Voltage | Vop | — | 1.2 | 1.7 | V | CW,lop=lth+20mA |
| Monitor Current | Imon | 0.1 | — | 1 | mA | DC,lop=lth+20mA |
| Rise/Fall time | Tr/Tf | — | — | 50 | ps | 20%-80% |
| Monitor Dark Current | ld | — | — | 100 | nA | Vrd=5V |
| PD Capacitance | Ct | — | 5 | 7 | pF | Vrd=5V@1MHz |
| Tracking Error | TE | -1.5 | — | 1.5 | dB | APC,0℃/+25℃ +25℃/+85℃ |
Receiver Optical And Electrical Characteristics12 rows · Electrical / optical characteristics
Scroll horizontally to view all columns
| Parameter | Symbol | Min. | Typ. | Max. | Unit | Note |
|---|---|---|---|---|---|---|
| Operating Wavelength | — | 1575 | 1577 | 1580 | V | — |
| Supply Voltage | Vcc | 3 | 3.3 | 3.6 | mA | — |
| TIA Supply Current | Icc | — | 27 | 45 | dBm | Vcc=3.3V |
| Sensitivity | Sen | — | — | -30 | V | λ=1577nm,9.95Gbps/10.3125Gbps PRBS=2^31-1,ER≥6dB,BER≤10-3,Vbr-3V,CW |
| Breakdown voltage | Vbr | 25 | 33 | 45 | dBm | l=10uA |
| Overload Power | Pol | -7 | — | — | dB | λ=1577nm,9.95Gbps/10.3125Gbps PRBS=2^31-1,ER≥6dB,BER≤10-3,Vbr-3V,CW |
| Optical Return Loss | ORL | — | — | -20 | dB | λ=1577nm |
| Optical Crosstalk From internal Laser | Xopt | — | — | -40 | dB | 1270nm/1577nm |
| Dark Current | ld | — | — | 100 | nA | Tc=25℃ |
| Rx filter specication@1260~1560nm | Isolation | 35 | — | — | dB | 1260~1560nm |
| Rx filter specication@1595~1660nm | Isolation | 35 | — | — | dB | 1260~1560nm |
| Rx filter specication@1575~1580nm | Isolation | — | — | 0.35 | dB | 1260~1560nm |
Product resources
Applications
- Telecommunication
- Data Communication
- GPON ONU ITU-T G984.5
- FTTH Bi-dirctional play
