Tap-PD detector with fiber pigtial of InGaAs PD SM single mode

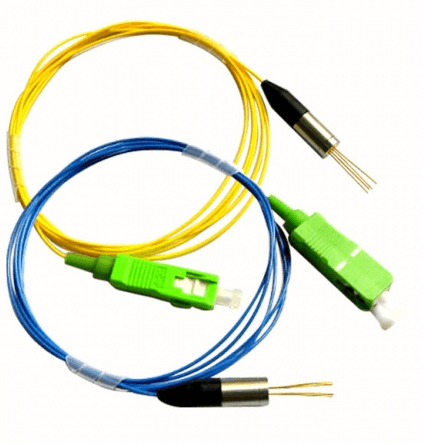

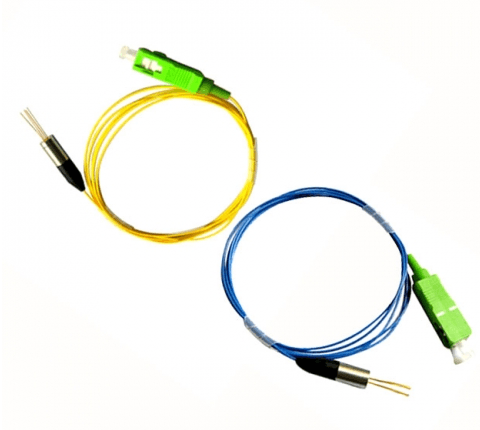

Tap-PD(Photodiode) detector with fiber pigtialInGaAs PD SM single mode (Φ0.25mm bare fiber/0.9mm loose tube fiber) TO46 Φ5.6*L27mm
Showing image 1 of 5: Tap-PD detector with fiber pigtial of InGaAs PD SM single mode
Product overview
Tap-PD(Photodiode) detector with fiber pigtial
- Place of Origin:China
- Certification:RoHS

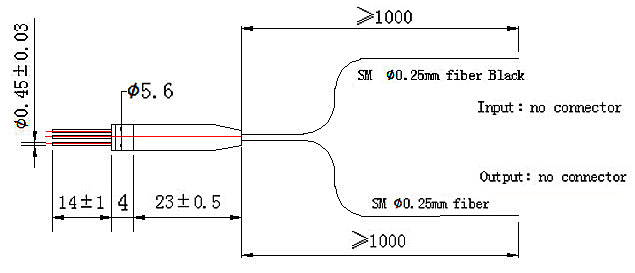

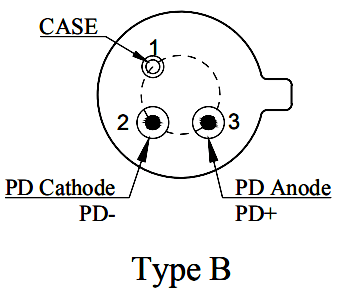

Pin Description and Package Dimensions
Φ0.25mm bare fiber
Φ0.9mm loose fiber

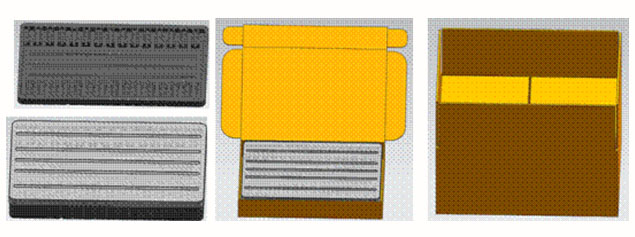

Packing Specification
- The specifications of the Antistatic boxes:320*220*15mm
- The specifications of the box：335mm*240mm*60mm
- The specifications of the Carton：485mm*345mm*260mm
- Number of packages：14pcs/Antistatic boxes，70 pcs(5 base 1 cap)/boxes，560 pcs(8 box)/Cartons
Key features
- InGaAs PIN photodiode ,Low dark current
- Compact package，Low insertion loss
Specifications
Absolute Maximum ratings6 rows · Absolute maximum ratings
Scroll horizontally to view all columns
| Parameter | Symbol | Min | Max | Unit |
|---|---|---|---|---|
| Forward current | If | — | 10 | mA |
| Reverse voltage | Vr | — | 20 | V |
| Operating temperature | Top | －5 | +70 | ℃ |
| Storage temperature | Tstg | －40 | +85 | ℃ |
| Solder Temperature | TS | — | 260 | ℃ |
| Soldering time | — | — | 10 | s |
Recommended Operating Conditions2 rows · Technical specifications
Scroll horizontally to view all columns
| Parameter | Symbol | Min | Type | Max | Unit |
|---|---|---|---|---|---|
| Case Operating Temperature Range | Tc | －5 | +25 | +70 | ℃ |
| Operating voltage | Vcc | -24 | -5 | — | V |
Optical and Electrical Characteristics(Tc=25℃)9 rows · Test data
Scroll horizontally to view all columns
| Parameter | Symbol | Min. | Type | Max. | Unit | Test condition |
|---|---|---|---|---|---|---|
| Pass Channel Wavelength Range | λ | 1260 | — | 1625 | nm | — |
| Responsivity 1% 2% 5% 10% | R | 7 14 35 70 | — | 12 24 65 120 | mA/W | — |
| Polarization Dependent Loss | PDL | — | — | 0.1 | dB | — |
| Return loss | RL | 45 | — | — | dB | — |
| Insert loss（COM- Reflect） 1% 2% 5% 10% | IL | — | 0.2 0.4 0.6 0.9 | 0.4 0.6 0.9 1.2 | dB | — |
| Input Power Range | — | — | — | 200 | mW | — |
| Fibre type | — | — | — | — | — | SMF-28e (Φ0.25mm bare fiber/Φ0.9mm loose fiber) |
| ESD | — | — | — | 500 | V | — |
| Dark Current | Id | — | — | 1 | nA | — |
Applications
- Optical fiber sensors,Optical test instrumentation
- FTTH , Communications systems
Custom engineering
Need a different optical or mechanical configuration?
Share the target wavelength, output or sensitivity, package, connector or pigtail, temperature range, screening, quantity, and schedule for an engineering review.
