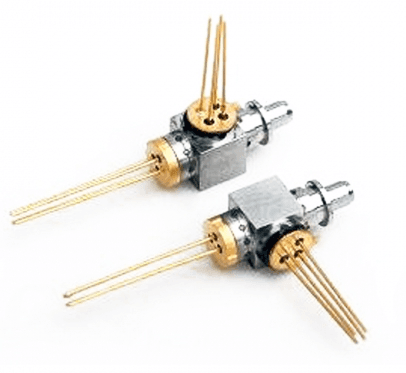

Name: Fiber optic pin diode, photo diode, photodiode detector,pindetector with coaxial pigtail
Brand: DTNT

Product overview

Fiber optic pin diode, photo diode, photodiode detector,pindetector with coaxial pigtail

Type: Photo Diode

Package Type:Through Hole

Low dark current
Responsivity: 0.88A/W
cut-off frequency: 1.25G or 2.5G

Key features

Low Capacitance: ≤1pF
2GHz Frequency Response
Low Dark Current, Low Back Reflection
High Responsivity: ≥0.85A/W 1310nm ≥0.90A/W 1550nm
Laser Welding, Coaxial Package
High Reliability and Long Operation Life
Various Connector Type: FC,SC,ST,LC,MU

Product details

Supply Ability: 50K PCS/Month
Packaging Details: Pin package, static electricity package, 10PC/box, carton box just according to your quantity.

Specifications

Specification5 rows · Technical specifications

Scroll horizontally to view all columns

Specification for Fiber optic pin diode, photo diode, photodiode detector,pindetector with coaxial pigtail
Parameter	Rating
Max. Forward Voltage	2V
Max. Reverse Voltage	20V
Max. Forward Current	2mA
Max. Reverse Current	2mA
Colour	white, yellow, blue

Applications

CATV Forward/Return Path
QAM 64/256 System
PON
FTTH Network
EDFA Monitors
CATV, CDMA optic transmission, monitor transmission

Custom engineering

Need a different optical or mechanical configuration?

Share the target wavelength, output or sensitivity, package, connector or pigtail, temperature range, screening, quantity, and schedule for an engineering review.
