ROSAROSA

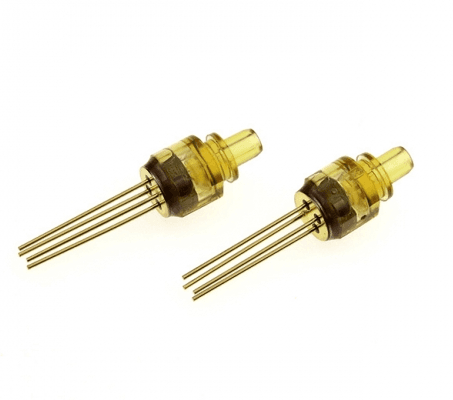

Receptacle type ROSA with SC Adapter
PIN-TIA diode.
- Wavelength
- 1310nm / 1550nm / 1625nm / 1650nm
- Package
- RECEPTACLE / ROSA
- Interface
- SC
Showing image 1 of 3: Receptacle type ROSA with SC Adapter

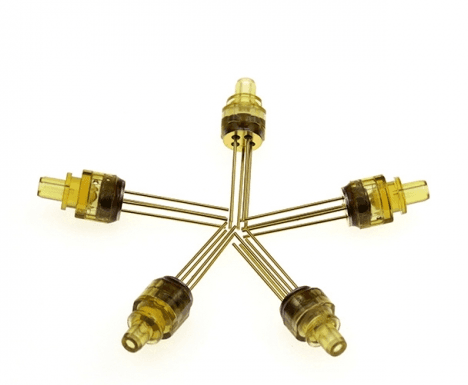

Product overview
Type: ROSA Laser Diode
Application:Remote communication, point to point communication
Wavelength:1310nm,1550nm,1625nm,1650nm
- PIN-TIA diode.
- Product structure remarks: LC/PC ferrule assembly, adhesive structure
Table1 Absolute Maximum Ratings (Tc=25±3℃, unless otherwise noted)
Receiving end(Unless specified else，the specifications below are defined at TC=25±3℃ )

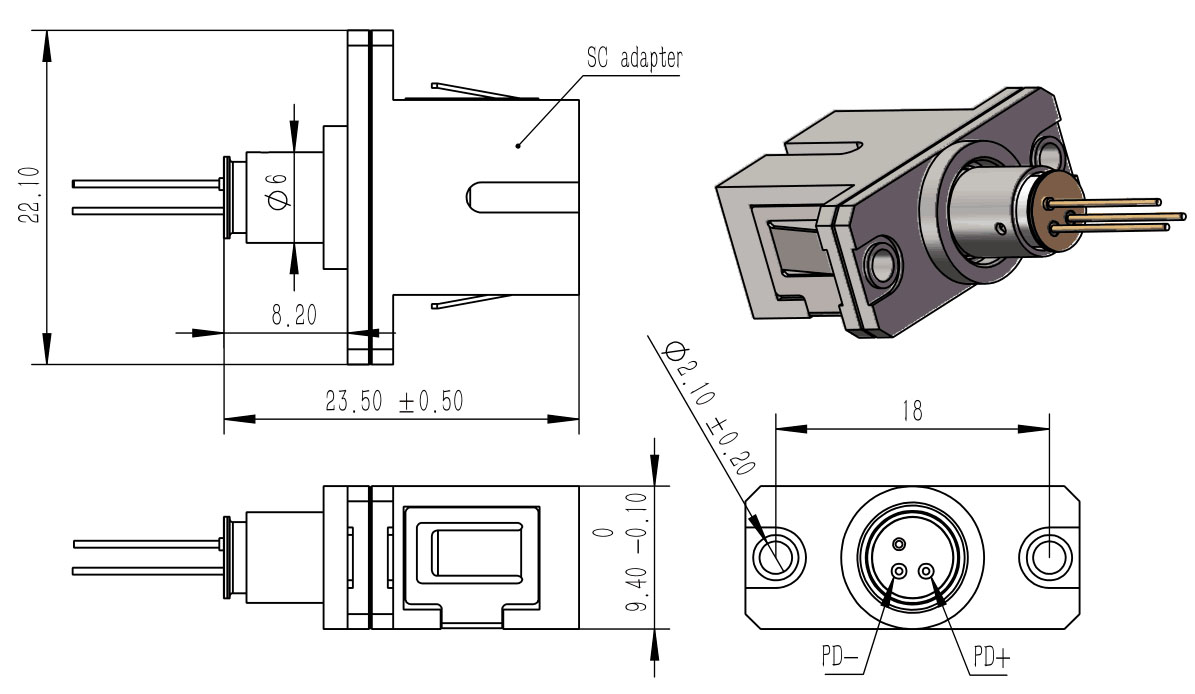

Product outline drawing
Remark: Glue bonding process is applicated to receiving end.
Unit: mm,Undeclared tolerance: ±0.05mm.
Standard
- Single package size: 46X31X29 cm
- Single gross weight:5.0 kg
Package Type:
- The outer box specification is 460*305*290mm, and each box can hold up to 640 products. 80 products are packed in 8 stacked; 8 anti-static trays can be loaded into 80 products.
Key features
- Laser welding solution
- High optical isolation
- High sensitivity
- Working temperature: 0 ° C ~ 75 ° C
- Receptacle ROSA
- Main photoelectric and environmental indicators of product
- Table1 Absolute Maximum Ratings (Tc=25±3℃, unless otherwise noted)
Product details
- Supply Ability
- 50K PCS/Month
- Packaging Details
- - Selling Units:Single item
Specifications
Absolute Maximum Ratings (Tc=25±3℃, unless otherwise noted)5 rows · Absolute maximum ratings
Scroll horizontally to view all columns
| Parameter | Symbol | Min. | Max. | Unit |
|---|---|---|---|---|
| Storage Temperature | Tstg | -40 | 85 | ℃ |
| Operating Case Temperature | Top | 0 | 70 | ℃ |
| Reverse Voltage | Vr | — | 30 | V |
| Forward Current | If | — | 10 | mA |
| Lead Soldering (Temperature)/(Time) | --- | --- | 260/10 | ℃/Sec |
Receiving end(Unless specified else，the specifications below are defined at TC=25±3℃ )8 rows · Technical specifications
Scroll horizontally to view all columns
| Parameter | Symbol | Min. | Typ. | Max. | Unit | Condition |
|---|---|---|---|---|---|---|
| Operating Wavelength | λ | 1270 | 1550 | 1650 | nm | Tc=-5℃ to 75℃ |
| Responsivity at 1550 nm | Res | 0.8 | --- | --- | A/W | λ=1550nm |
| Responsivity at 1310，1625 nm | Res2 | 0.7 | --- | --- | A/W | λ=1310nm ，1625nm |
| Responsivity at 1650 nm | Res3 | 0.6 | --- | --- | A/W | λ=1650nm |
| Optical Return Loss | ORL | --- | --- | -20 | dB | λ=1550nm |
| Dark Current | Id | --- | 0.3 | 0.5 | nA | Vr =-5V，25℃ |
| PIN capacitance | C | — | 0.5 | 0.6 | pF | Vr =-5V F=1MHz |
| Saturated Optical Power | Ps | 3 | — | — | dBm | Vr =-5V |
Product resources
Applications
- Remote communication
- Point to point communication
Standards & compliance
- Compliant with GR - 326 connector eligibility criteria
- Compliant with Telcordia GR-468 reliability test criterion
- Compliant with RoHS6 standard
Custom engineering
Need a different optical or mechanical configuration?
Share the target wavelength, output or sensitivity, package, connector or pigtail, temperature range, screening, quantity, and schedule for an engineering review.
Send the requirementSame product family
