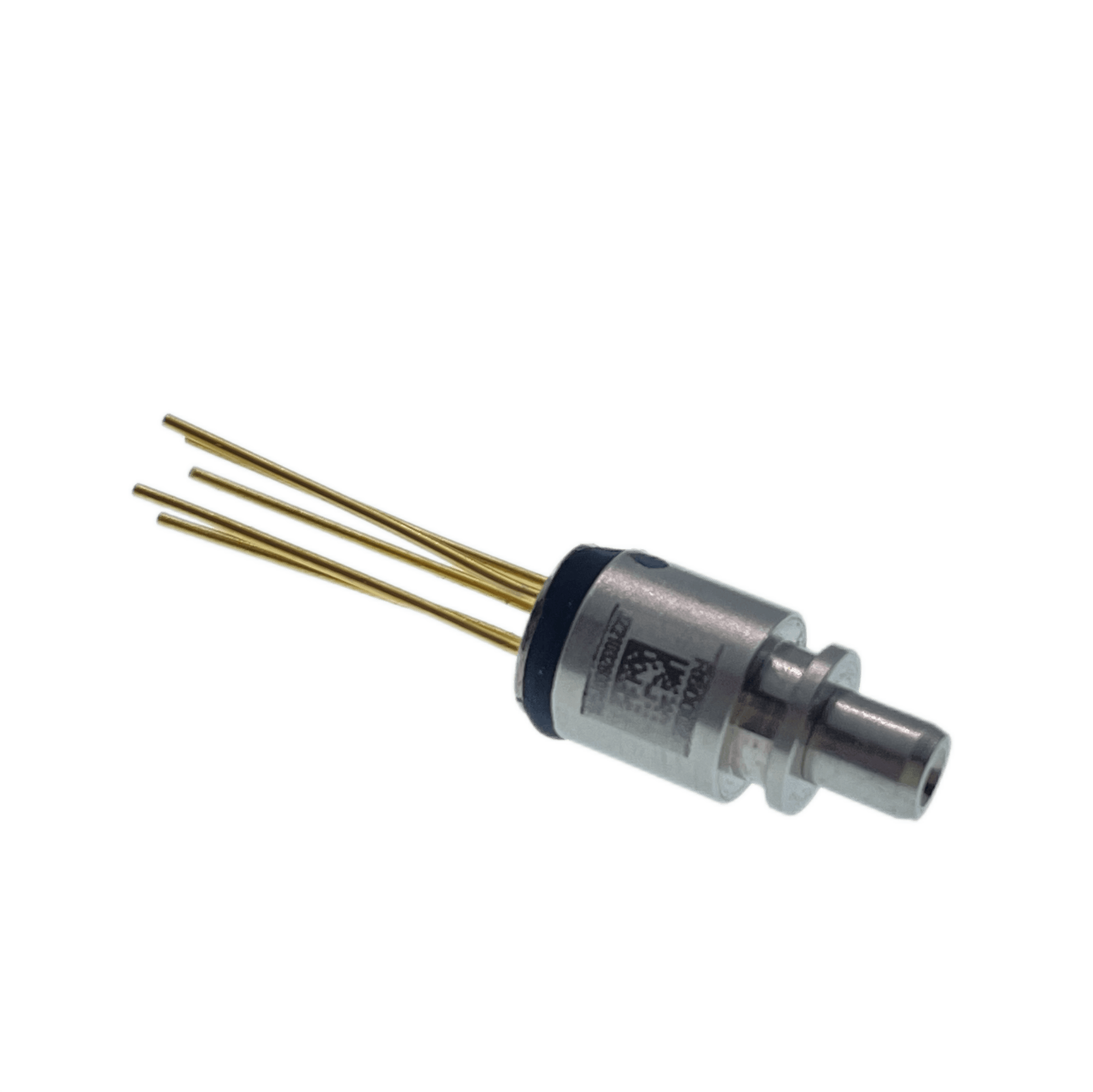

Showing image 1 of 2: 25G ROSA
Product overview
Specifications
Technical Specifications
8 rows · Test data
Scroll horizontally to view all columns
| Item | Symbol | Test Condition | Min. | Typ. | Max. | Unit |
|---|---|---|---|---|---|---|
| Receiver Electro-Optical Characteristics (TC=25°C, Vcc=3.3V) | ||||||
| Operation Wavelength | λ | T1270/R1310 | 1300 | 1310 | 1320 | nm |
| — | — | T1330/R1270 | 1260 | 1270 | 1280 | nm |
| Saturation Power | PSAT | 25Gbps, PRBS=2^31-1, ER≥ 4dB,BER≤10-12, CW | 3 | --- | --- | dBm |
| Sensitivity @155.52M | Sen | 25Gbps, PRBS=2^31-1, ER≥ | --- | — | -11.5 | dBm |
| — | — | 4dB,BER≤10-12,CW | — | — | — | — |
| Optical Return Loss | ORL | λ=1270/1330nm | -- | --- | -20 | dB |
| Optical Crosstalk | XTALK | 1270nm/1310nm 1310nm/1270nm | — | --- | -40 | dB |
Custom engineering
Need a different optical or mechanical configuration?
Share the target wavelength, output or sensitivity, package, connector or pigtail, temperature range, screening, quantity, and schedule for an engineering review.
Send the requirementSame product family
Related configurations
| Product | Wavelength | Data rate | Package | Interface |
|---|---|---|---|---|
| 10G LC ROSA Digital Metal Shell with Receptacle | Not listed | 10G | ROSA / RECEPTACLE | LC |
| 10G LC ROSA Digital Plastic Shell with Receptacle | Not listed | 10G | ROSA / RECEPTACLE | LC |
| Digital Plastic Shell LC ROSA with Receptacle | Not listed | Not listed | ROSA / RECEPTACLE | LC |
| Receptacle type ROSA with SC Adapter | 1310nm / 1550nm / 1625nm / 1650nm | Not listed | RECEPTACLE / ROSA | SC |
