ROSA

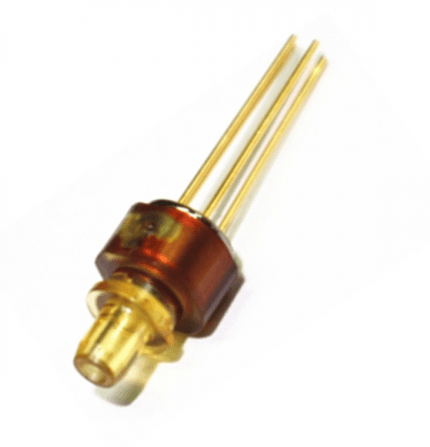

10G LC ROSA Digital Plastic Shell with Receptacle

This product is a light receiving component with a working speed of 155M,1.25G,2.5G.

Data rate: 10G
Package: ROSA / RECEPTACLE
Interface: LC

Product overview

Type:LC ROSA

Application:Remote communication, point to point communication

Wavelength:1310nm

This product is a light receiving component with a working speed of 155M,1.25G,2.5G.
PIN-TIA diode.

Chip information:

PT: 10G PIN-TIA

Product structure remarks: LC/PC ferrule assembly, adhesive structure

Standard

Single package size: 46X31X29 cm
Single gross weight:5.0 kg

Package Type:

The outer box specification is 460*305*290mm, and each box can hold up to 640 products. 80 products are packed in 8 stacked; 8 anti-static trays can be loaded into 80 products.

Key features

Laser welding solution
High optical isolation
High sensitivity
Working temperature: 0 ° C ~ 75 ° C
Receptacle LC ROSA

Product details

Supply Ability: 50K PCS/Month
Packaging Details: - Selling Units:Single item

Applications

Remote communication
Point to point communication

Standards & compliance

Compliant with GR - 326 connector eligibility criteria
Compliant with Telcordia GR-468 reliability test criterion
Compliant with RoHS6 standard

Custom engineering

Need a different optical or mechanical configuration?

Share the target wavelength, output or sensitivity, package, connector or pigtail, temperature range, screening, quantity, and schedule for an engineering review.
