ROSA

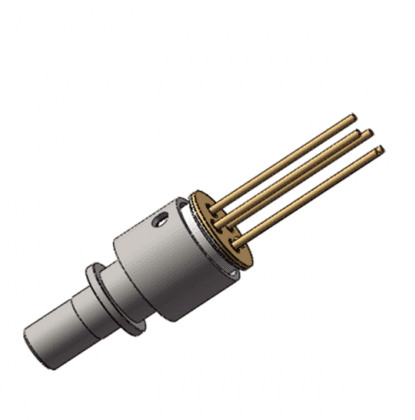

10G LC ROSA Digital Metal Shell with Receptacle

Model · LC ROSA

The product is an uplink 1310nm wavelength / operating rate 10.3125Gb / s light receiving component.

Data rate: 10G
Package: ROSA / RECEPTACLE
Interface: LC

Product overview

Type:Pin Diode

Package Type:Receptacle

Wavelength:1310nm

The product is an uplink 1310nm wavelength / operating rate 10.3125Gb / s light receiving component
PIN-TIA diode
Chip information: PT: 10.3125Gpbs PIN-TIA
Product structure remarks: LC/PC ferrule assembly, machining/powder parts, viscose structure

Standard

Single package size: 46X31X29 cm
Single gross weight:5.0 kg

Package Type:

The outer box specification is 460*305*290mm, and each box can hold up to 640 products. 80 products are packed in 8 stacked; 8 anti-static trays can be loaded into 80 products.

Key features

Laser welding solution
Working rate is 10.3125G
High optical isolation
Working temperature: 0°C~75°C
Receptacle LC ROSA

Product details

Model Number: LC ROSA
Supply Ability: 50K PCS/Month
Packaging Details: - Selling Units:Single item

Specifications

Specification5 rows · Technical specifications

Scroll horizontally to view all columns

Specification for 10G LC ROSA Digital Metal Shell with Receptacle
Parameter	Rating
Max. Forward Voltage	2V
Max. Reverse Voltage	15V
Max. Forward Current	10mA
Max. Reverse Current	150mA
Wavelength	1310nm

Applications

Remote communication
Point-to-point communication

Standards & compliance

Compliant with GR - 326 connector eligibility criteria
Compliant with Telcordia GR-468 reliability test criterion
Compliant with RoHS6 standard

Custom engineering

Need a different optical or mechanical configuration?

Share the target wavelength, output or sensitivity, package, connector or pigtail, temperature range, screening, quantity, and schedule for an engineering review.

Send the requirement
