Receptacle GPON OLT BOSA BA-34 series
BOSA
Model · BA-34 series T2.55G/R1.25G
This GPON OLT BOSA is a high performance optical sub-assembly in single fiber by using 1490nm transmitterand 1310nm burst mode receiver with 1550/1650nm optical signal rejection.
- Data rate
- 2.5G Tx / 1.25G Rx
- Package
- RECEPTACLE / BOSA

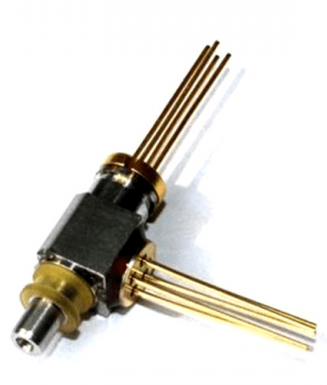

Showing image 1 of 2: Receptacle GPON OLT BOSA BA-34 series
Product overview
- Type: BOSA
- This GPON OLT BOSA is a high performance optical sub-assembly in single fiber by using 1490nm transmitterand 1310nm burst mode receiver with 1550/1650nm optical signal rejection.
- The transmitter section uses a multiple quantum well 1490nm DFB laser and is class I laser complaint productaccording to International Safety Standard IEC-60825.
- Supporting burst-mode operation, the receiver section uses a TO-can built in a 1310nm APD chip and a burstmode trans-impedance amplifier.
Standard
Packaging & Delivery
- Selling Units:Single item
- Single package size: 46X31X29 cm
- Single gross weight:5.0 kg
Package Type:
The outer box specification is 460*305*290mm, and each box can hold up to 640 products. 80 products are packed in 8 stacked; 8 anti-static trays can be loaded into 80 products.
Key features
- Receptacle type single fiber bi-directional transmission designed for Passive Optical Network (PON) digital communication
- Asymmetric 2.5Gbps downstream and 1.25Gbps upstream data link transmission
- Laser welded transmitter and epoxy cured receiver package
- Integrated micro-optics WDM filters for dual wavelength Tx/Rx operation at 1310/1490nm
- 1490nm InGaAsP/InP MQW DFB laser diode transmission with high bandwidth InGaAs monitor photodiode
- 1310nm digital APD with integrated 1.25Gbps, 3.3V burst mode transimpedance-amplifier
- Built-in free-space optical isolation, high optical isolation from external source and low optical cross-talkfrom internal source -5°C to 85°C extended commercial operating temperature range with excellent temperature dependentpower tracking error
Product details
- Model Number
- BA-34 series T2.55G/R1.25G
- Supply Ability
- 6KK PCS/Month
Specifications
Specification
6 rows · Technical specifications
Scroll horizontally to view all columns
| Parameter | Rating |
|---|---|
| Max. Forward Voltage | 2V |
| Max. Reverse Voltage | 20V |
| Max. Forward Current | 2mA |
| Max. Reverse Current | 150mA |
| Wavelength | Up 1490nm Down 1310nm |
| Connector | FC SC |
Applications
- GPON Bi-directional play transceiver, OLT
- FTTH Bi-directional play
Standards & compliance
- Compliant with ITU-T G984.5 telecommunication protocol
- Compliant with Telcordia GR-468 reliability test criterion
- Compliant with RoHS6 standard
