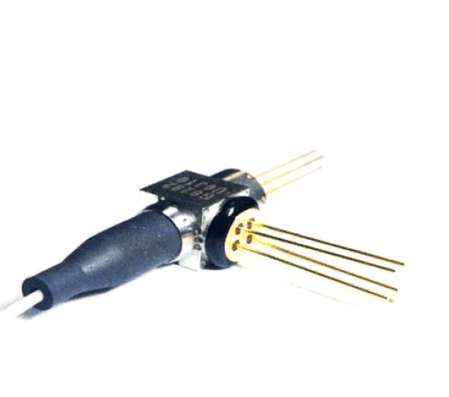

Pigtail GPON ONU BOSA Down 1310 1.25GUp 1490 2.5G for optical fiber communication

Model · BA-33 series T1.25G/R2.5G

This BOSA is a high performance optical sub-assembly in single fiber by using 1310nm transmitter and 1490nm receiver.

Data rate: 2.5G
Package: PIGTAIL / BOSA

Product overview

Type:BOSA
This BOSA is a high performance optical sub-assembly in single fiber by using 1310nm transmitter and 1490nm receiver.
The transmitter section uses a multiple quantum well 1310nm DFB laser supporting burst-mode operation.
The receiver section uses a TO-can built in a long wavelength PIN diode and a 2.5Gbps transimpedance amplifier.

Standard

Packaging & Delivery

Selling Units:Single item
Single package size: 46X31X29 cm
Single gross weight:5.0 kg

Package Type:

The outer box specification is 460*305*290mm, and each box can hold up to 640 products. 80 products are packed in 8 stacked; 8 anti-static trays can be loaded into 80 products.

Key features

Single fiber pigtail type bi-directional transmission design for digital communication.
Asymmetric 2.5Gbps downstream and 1.25Gbps upstream data link transmission.
Laser welded transmitter and epoxy cured receiver package.
Integrated micro-optics WDM filters for dual wavelength Tx/Rx operation at 1310/1490nm.
1310nm InGaAsP/InP MQW DFB laser diode transmission with high bandwidth InGaAs monitor photodiode;1490nm digital APD with integrated 2.5Gbps, 3.3V continuous mode transimpedance-amplifier.
High optical isolation from external source and low optical cross-talk from internal source-5°C to +75°C commercial temperature and -40°C to +85°C industrial operating temperature available with excellent temperature dependent power tracking error.

Product details

Model Number: BA-33 series T1.25G/R2.5G
Supply Ability: 50K PCS/Month

Specifications

Specification6 rows · Technical specifications

Scroll horizontally to view all columns

Specification for Pigtail GPON ONU BOSA Down 1310 1.25GUp 1490 2.5G for optical fiber communication
Parameter	Rating
Max. Forward Voltage	2V
Max. Reverse Voltage	20V
Max. Forward Current	2mA
Max. Reverse Current	150mA
Wavelength	Up 1490nm Down 1310nm
Connector	FC SC

Applications

GPON BOB ONU optical modem, class B+,C+
GPON ONU transceiver
FTTH Bi-directional play

Standards & compliance

Compliant with ITU-T G984.5 telecommunication protocol
Compliant with Telcordia GR-468 reliability test criterion
Compliant with Telcordia GR-326 connector qualification standard
Compliant with RoHS6 standard

Custom engineering

Need a different optical or mechanical configuration?

Share the target wavelength, output or sensitivity, package, connector or pigtail, temperature range, screening, quantity, and schedule for an engineering review.
