Name: InGaAs pin photodiode
Brand: DTNT

Product overview

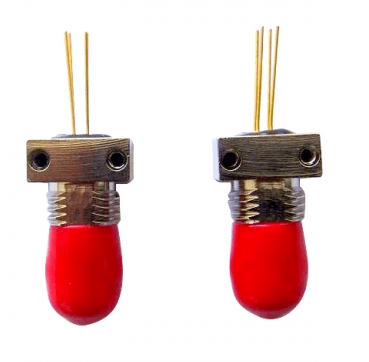

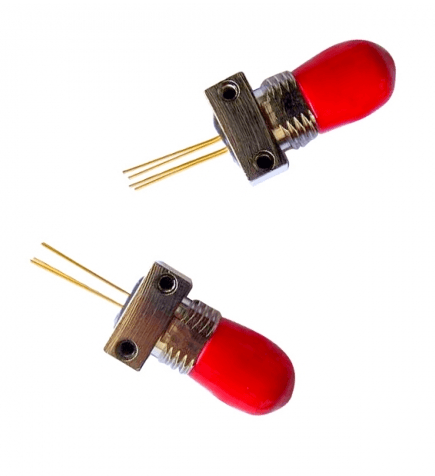

InGaAs pin photodiode

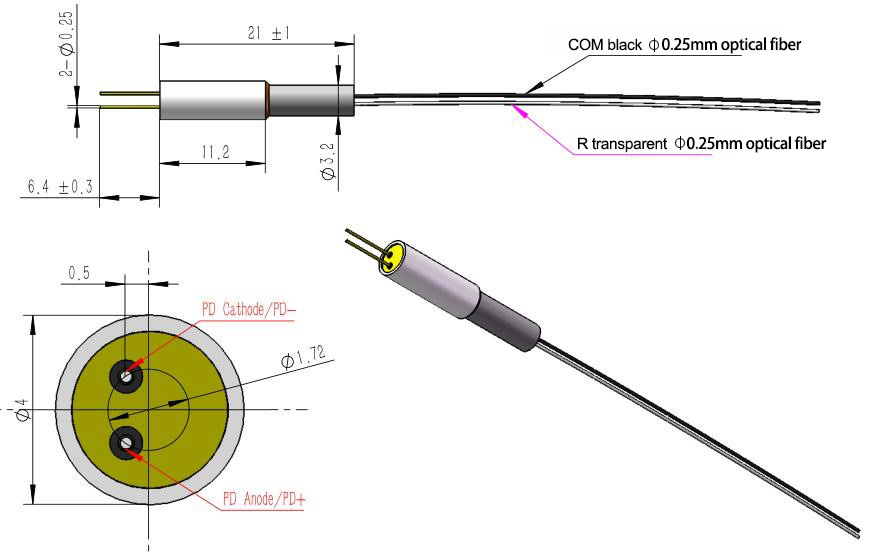

PinDescriptionandPackageDimensions：（mm）

Key features

InGaAs PIN photodiode,Low dark current
Compact package,Low insertion loss

Product details

Supply Ability: 100000 PCS/Month more or less
Packaging Details: - Pack in carton

Specifications

AbsoluteMaximumratings6 rows · Absolute maximum ratings

Scroll horizontally to view all columns

AbsoluteMaximumratings for InGaAs pin photodiode
Parameter	Symbol	Min	Max	Unit
Forwardcurrent	If	—	10	mA
Reversevoltage	Vr	—	20	V
Operatingtemperature	Top	－5	+70	℃
Storagetemperature	Tstg	－40	+85	℃
SolderTemperature	TS	—	260	℃
Solderingtime	—	—	10	s

RecommendedOperatingConditions2 rows · Technical specifications

Scroll horizontally to view all columns

RecommendedOperatingConditions for InGaAs pin photodiode
Parameter	Symbol	Min	Type	Max	Unit
CaseOperatingTemperatureRange	Tc	－5	+25	+70	℃
Operatingvoltage	Vcc	-24	-5	—	V

OpticalandElectricalCharacteristics(Tc=25℃)12 rows · Electrical / optical characteristics

Scroll horizontally to view all columns

OpticalandElectricalCharacteristics(Tc=25℃) for InGaAs pin photodiode
Parameter	Unit	Value
Operatingwavelength	nm	1260-1650
Tapratio	%	2
Responsivity	A/W	Min：0.016Max：0.024
ReflectionInsertionloss	dB	Max：0.6
PDDarkCurrent（Vr=5V）	nA	≤1
Returnloss	dB	≥45
PDL	dB	≤0.1
Insertionlossthermalstability	dB/℃	≤0.005
InputPowerRange	mW	Max：200
尺寸Dimensions	mm	Φ4.0
Fibretype	—	SMF-28e(9/125umΦ0.25mmbarefiber)
ESD	V	200
