InGaAs APD & Pin photodiodeInGaAs APD & Pin photodiode
6G photodiode or avalanche photo diode with receptacle Pin-diode
Coaxial plug-in large photosurface photodiode, high saturation response current, multiple interfaces available.
- Data rate
- 6G
- Package
- RECEPTACLE

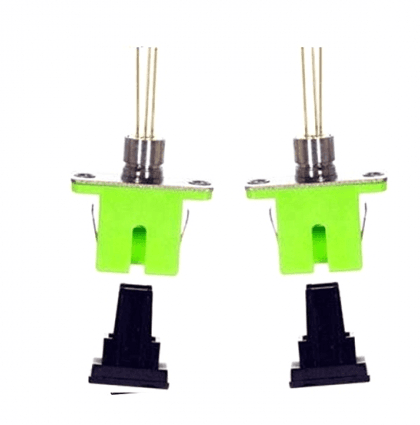

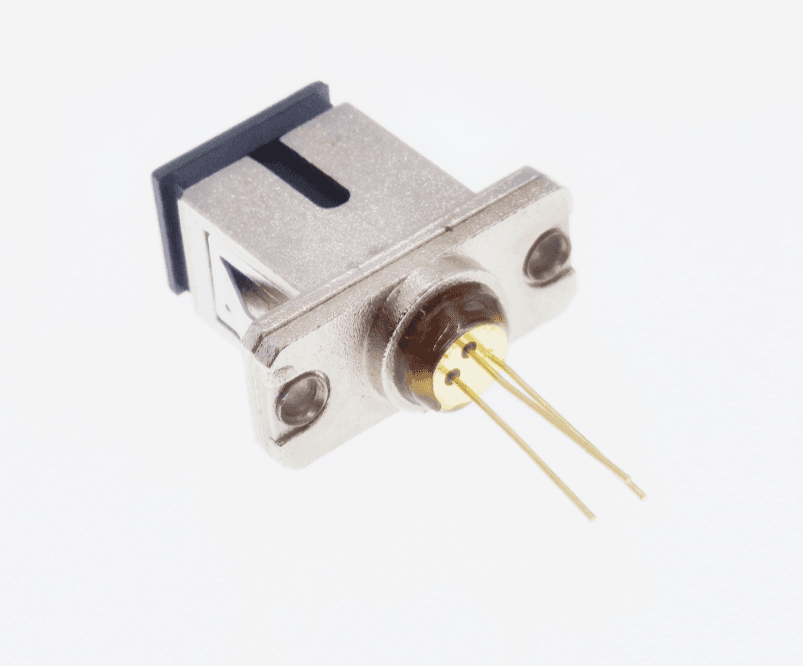

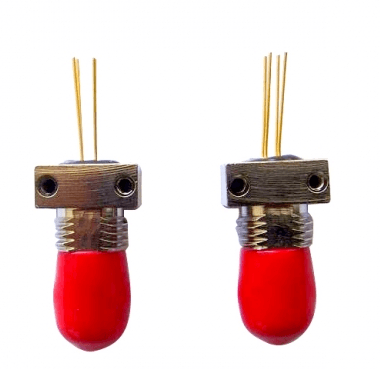

Showing image 1 of 4: 6G photodiode or avalanche photo diode with receptacle Pin-diode
Product overview
Type:Photo Diode
Package Type:Receptacle or pigtail
Coaxial plug-in large photosurface photodiode, high saturation response current, multiple interfaces available.

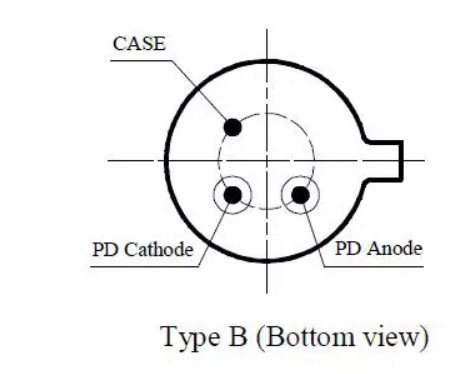

Pin Assignment

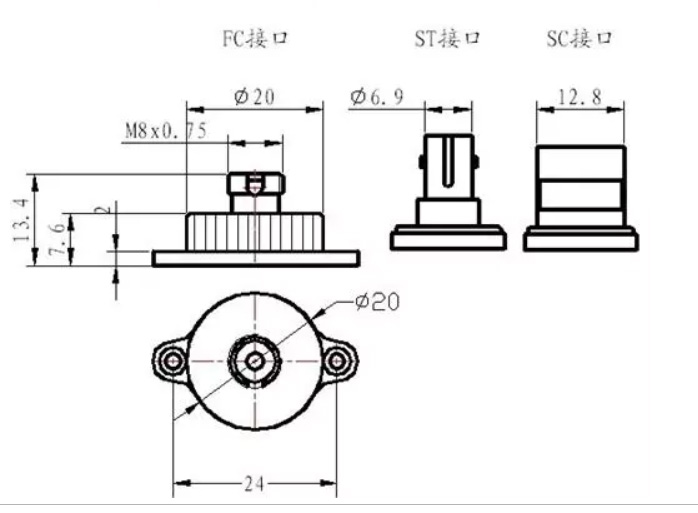

Dimension Outline
Product Standards
- Absolute Maximum Ratings
Packaging
- Single package size: 46X31X29 cm
- Single gross weight:5.0 kg
Package Type:
The outer box specification is 460*305*290mm, and each box can hold up to 640 products. 80 products are packed in 8 stacked; 8 anti-static trays can be loaded into 80 products
Key features
- Low dark current,high reliability, high linearity
- Receive light sensitive optional
- High saturation power10dBm 20dBm 23dBm 30dBm etc
- Good identity for interface and receptacle
Product details
- Supply Ability
- 100K PCS/Month
- Packaging Details
- Pack in static electricity package
Specifications
Technical Specifications5 rows · Technical specifications
Scroll horizontally to view all columns
| Parameter | Rating |
|---|---|
| Max.Forward Voltage | 2V |
| Max.Reverse Voltage | 20V |
| Max.Forward Voltage | 2mA |
| Max.Reverse Voltage | 2mA |
| Wavelength | 650-1650 |
Absolute Maximum Ratings4 rows · Absolute maximum ratings
Scroll horizontally to view all columns
| Item | Unit | Min | Max | Note |
|---|---|---|---|---|
| Forward current | mA | — | 10.0 | If |
| Reverser voltage | V | — | 20 | Vr |
| Operating temperature | ℃ | -40 | +85 | Top |
| Storage temperature | ℃ | -40 | +85 | Tstg |
Transmitter Electro-Optical Characteristics (TC=25CW)7 rows · Test data
Scroll horizontally to view all columns
| Item | Symbol | Test Condition | Min. | Typ. | Max. | Unit. |
|---|---|---|---|---|---|---|
| Optical Wavelength Range | λ | — | 650 | — | 1650 | — |
| Responsivity | R | VR=5λ=1310nm | 0.83 | 0.87 | — | A/W |
| Responsivity | R | VR=5λ=1310nm | 0.85 | 0.9 | — | A/W |
| Saturated optical power | Ps | VR=5 | — | — | — | dBm |
| Dar Current | ld | VR=5 | — | — | 15 | nA |
| Capacitance | C | VR=5 F=1MHZ | — | — | 0.75 | pF |
| Photosensitive surface diameter | φ | — | — | 75 | — | um |
Applications
- Apply to vary power meter & instrument
- Apply to optical receiver for special require
Standards & compliance
- Meet the GR-468 reliability test standard
- RoHS compliant
- General requirements for GR-326 single mode optical connectors and jumpers
Custom engineering
Need a different optical or mechanical configuration?
Share the target wavelength, output or sensitivity, package, connector or pigtail, temperature range, screening, quantity, and schedule for an engineering review.
