Name: APD or Pin PD coaxial FCAPC/SCAPC pigtail or receptacle photo diode
Brand: DTNT

Product overview

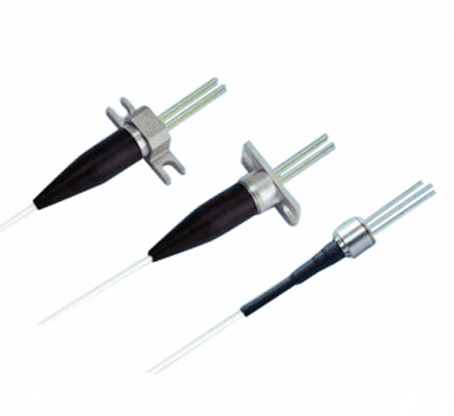

coaxial pigtail FCAPC-SCAPC receptacle photo diode

coaxial pigtail FCAPC-SCAPC receptacle photo diode Product detail

Product standard

Key features

Low Capacitance: ≤1pF
2GHz Frequency Response
Low Dark Current, Low Back Reflection
High Responsivity: ≥0.85A/W 1310nm ≥0.90A/W 1550nm
Laser Welding, Coaxial Package
High Reliability and Long Operation Life
Various Connector Type: FC,SC,ST,LC,MU

Product details

Supply Ability: 100K PCS/Month
Packaging Details: Pack in static electricity package, according to customer packing requirement

Specifications

Absolute Maximum Rating:(Tc=25℃)6 rows · Absolute maximum ratings

Scroll horizontally to view all columns

Absolute Maximum Rating:(Tc=25℃) for APD or Pin PD coaxial FCAPC/SCAPC pigtail or receptacle photo diode
Parameter	Symbol	Min.	Max.	Unit
Operating Temperature Range	Top	-40	+85	°C
Storage Temperature Range	Tstg	-40	+85	°C
Soldering Temperature Tmax= 10s	Ts	-	260	°C
Forward Current	Ifd	-	10	mA
Reverse Voltage	Vrd	-	25	V
Saturation Input Power	Psat	-	10	mW

Applications

CATV Forward/Return Path
QAM 64/256 System
PON
FTTH Network
EDFA Monitors

Standards & compliance

Match the ROSH standard
Match the ReACH standard

Custom engineering

Need a different optical or mechanical configuration?

Share the target wavelength, output or sensitivity, package, connector or pigtail, temperature range, screening, quantity, and schedule for an engineering review.
