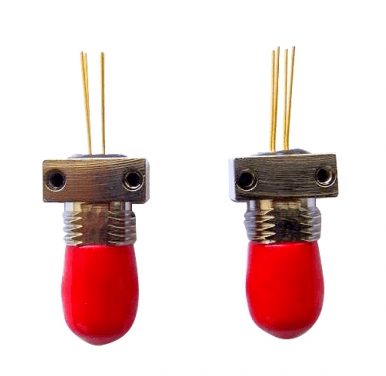

Name: High Saturation pin diode Photodiode detector With Receptacle for telecommunication
Brand: DTNT

Product overview

High Saturation Photodiode With Receptacle for telecommunication

Type: Photo Diode

Package Type:Through Hole

Product standard

Key features

Low dark current,high reliability, high linearity
Receive light sensitive optional
High saturation power(10dBm,20dBm,23dBm,30dBm etc)
Good identity for interface and receptacle
Long Operation Life:5 years

Product details

Supply Ability: 6KK PCS/Month
Packaging Details: Pack in static electricity packagge

Specifications

Specification5 rows · Technical specifications

Scroll horizontally to view all columns

Specification for High Saturation pin diode Photodiode detector With Receptacle for telecommunication
Parameter	Rating
Max. Forward Voltage	2V
Max. Reverse Voltage	20V
Max. Forward Current	2mA
Max. Reverse Current	2mA
Colour	Red

Technical parameters:(T=25℃)8 rows · Technical specifications

Scroll horizontally to view all columns

Technical parameters:(T=25℃) for High Saturation pin diode Photodiode detector With Receptacle for telecommunication
Parameter	Symbol	Unit	Testing condition	Mix	Typ.	Max.
Wavelength range	λ	nm	—	650	—	1650
Dark current	Id	nA	Vr=-5V 25°C	—	0.2	1
Responsively	R	A/W	Vr=-5V,λ=1310nm	—	0.80	—
Photo Sensitive Diameter	Φ	μm	—	—	300	1000
Saturation optical power	P	dBm	Vr=-5	—	—	26
Response time	tr/tf	ns	RL=50Ω	—	0.1	—
capacitance	C	pF	Vr=-5V	—	—	0.75
Transmitting rate	fc	Gb/s	—	—	1	—

Applications

Apply to vary power meter & instrument
Apply to optical receiver for special require

Standards & compliance

Match the ROSH standard
Match the ReACH standard

Custom engineering

Need a different optical or mechanical configuration?

Share the target wavelength, output or sensitivity, package, connector or pigtail, temperature range, screening, quantity, and schedule for an engineering review.
