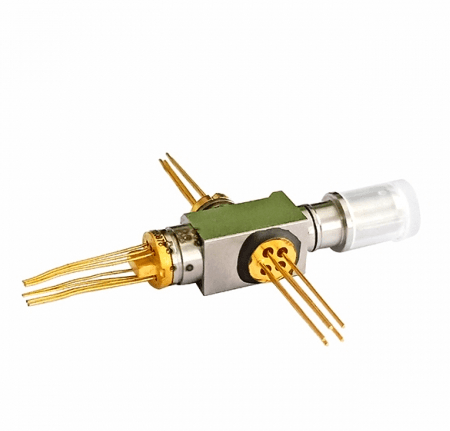

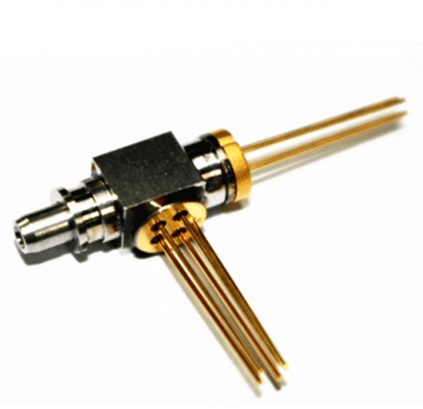

Digital Mini DFB BOSA (CSFP) UpDown 1.25Gbs 1310nm1490nm1550nm

Model · Mini BOSA

The product is a point-to-point BOSA component with an upstream 1310nm/1490nm/1550nm wavelength/working rate of 1.25Gb/s and a downstream 1310/1490nm/1550nm operating rate of 1.25Gb/s.

Wavelength: 1310nm / 1490nm / 1550nm
Data rate: 1.25G
Package: BOSA

Product overview

Type:BOSA

Package Type:Receptacle

The product is a point-to-point BOSA component with an upstream 1310nm/1490nm/1550nm wavelength/working rate of 1.25Gb/s and a downstream 1310/1490nm/1550nm operating rate of 1.25Gb/s.
The starter uses a DFB laser and the receiving end uses a PIN-TIA diode.

Chip information:

LD: 1310nm/1490nm/1550nm 1.25Gpbs DFB 4PIN

PT: 1.25G PIN-TIA

Product structure remarks: LC/PC ferrule assembly, machining/powder structure, receiving end adhesive structure, without isolator.

Standard

Packaging & Delivery

Selling Units:Single item
Single package size: 46X31X29 cm
Single gross weight:5.0 kg

Package Type:

The outer box specification is 460*305*290mm, and each box can hold up to 640 products. 80 products are packed in 8 stacked; 8 anti-static trays can be loaded into 80 products.

Key features

Laser welding solution
Point-to-point application
High optical isolation
Working temperature: -40 ° C ~ 85 ° C
Plug-in LC BOSA

Product details

Model Number: Mini BOSA
Supply Ability: 50K PCS/Month

Specifications

Specification5 rows · Technical specifications

Scroll horizontally to view all columns

Specification for Digital Mini DFB BOSA (CSFP) UpDown 1.25Gbs 1310nm1490nm1550nm
Parameter	Rating
Max. Forward Voltage	2V
Max. Reverse Voltage	15V
Max. Forward Current	10mA
Max. Reverse Current	150mA
Wavelength	Up 1.25Gbs 1310nm/1490nm/1550nm/ Down 1.25Gbs 1310/1490nm/1550nm

Applications

Remote communication
Point to point communication

Standards & compliance

Compliant with GR - 326 connector eligibility criteria
Compliant with Telcordia GR-468 reliability test criterion
Compliant with RoHS6 standard
