Digital DFB Up 1270nm 2.488G Down 1577nm 10G XGPON asymmetric ONU BOSA with Receptacle
BOSA
Model · DFB XGPON BOSA
This XG-PON ONU BOSA uses a 1270nm DFB transmitter at 2.488Gbps and a 1577nm APD-TIA receiver at 10Gbps. It has an SC receptacle.
- Wavelength
- 1270nm / 1577nm
- Data rate
- 2.488G / 10G
- Package
- BOSA / RECEPTACLE
- Interface
- SC

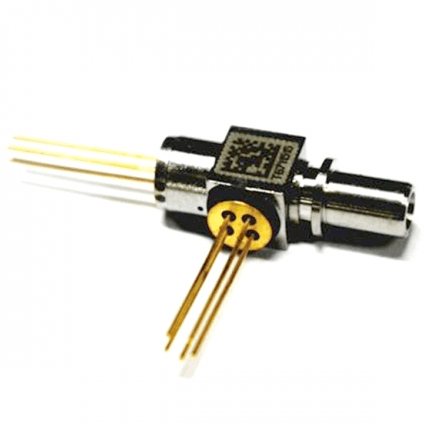

Showing image 1 of 2: Digital DFB Up 1270nm 2.488G Down 1577nm 10G XGPON asymmetric ONU BOSA with Receptacle
Product overview
Type:BOSA
Package Type:Receptacle
- ONU BOSA with an upstream 1270 wavelength/operating rate of 2.488Gbps, and a downstream 1577nm operating rate of 10G.
- The DFB laser is used at the origin, and the APD-TIA diode is used at the receiving end.
Chip information:
LD: 1270nm 2.488G DFB 4PIN
PT: 10Gbps APD-TIA
- Product structure remarks: SC/PC ferrule assembly, machining/powder structure, receiving end adhesive structure, with isolator.
Standard
- Single package size: 46X31X29 cm
- Single gross weight:5.0 kg
Package Type:
The outer box specification is 460*305*290mm, and each box can hold up to 640 products. 80 products are packed in 8 stacked; 8 anti-static trays can be loaded into 80 products.
Key features
- Laser welding solution
- Point-to-point application
- High optical isolation
- Working temperature: 0°C~70°C
- Receptacle SC BOSA
Product details
- Model Number
- DFB XGPON BOSA
- Supply Ability
- 50K PCS/Month
- Packaging Details
- - Selling Units:Single item
Specifications
Specification
5 rows · Technical specifications
Scroll horizontally to view all columns
| Parameter | Rating |
|---|---|
| Max. Forward Voltage | 2V |
| Max. Reverse Voltage | 20V |
| Max. Forward Current | 2mA |
| Max. Reverse Current | 150mA |
| Wavelength | 1270nm 2.488G Down 1577nm 10G |
Applications
- Remote communication
- Point to point communication
Standards & compliance
- Compliant with GR - 326 connector eligibility criteria
- Compliant with Telcordia GR-468 reliability test criterion
- Compliant with RoHS6 standard
Custom engineering
Need a different optical or mechanical configuration?
Share the target wavelength, output or sensitivity, package, connector or pigtail, temperature range, screening, quantity, and schedule for an engineering review.
