Digital 1310nm1490nm FP EPON ONU BOSA with Pigtail
BOSA
Model · GPON OLT BOSA
This BOSA is a high performance optical sub-assembly in single fiber by using 1310nm transmitter and 1490nm receiver.
- Package
- BOSA / PIGTAIL

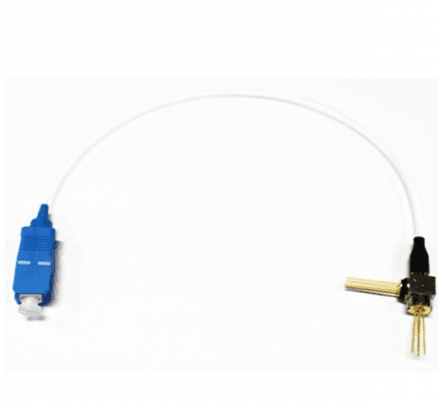

Showing image 1 of 2: Digital 1310nm1490nm FP EPON ONU BOSA with Pigtail
Product overview
Type: BOSA
Package Type: Receptacle
- This BOSA is a high performance optical sub-assembly in single fiber by using 1310nm transmitter and 1490nm receiver.
- Transmitter is DFB LD, receiver is APD-TIA diode
Chip Information:
LD: 1310nm 2.5Gpbs DFB 4PIN
PT: 1.25Gpbs APD-TIA
- Product structure remarks: SC/PC ferrule sleeve assembly, machined / powder part structure, receiving end adhesive structure, without isolator.
Standard
- Single package size: 46X31X29 cm
- Single gross weight:5.0 kg
Package Type:
The outer box specification is 460*305*290mm, and each box can hold up to 640 products. 80 products are packed in 8 stacked;8 anti-static trays can be loaded into 80 products.
Key features
- Laser welding solution
- Point-to-point application
- High optical isolation
- High sensitivity APD-TIA
- Working temperature: 0~75°C
- Receptacle SC BOSA
Product details
- Model Number
- GPON OLT BOSA
- Supply Ability
- 50K PCS/Month
- Packaging Details
- - Selling Units:Single item
Specifications
Specification
6 rows · Technical specifications
Scroll horizontally to view all columns
| Parameter | Rating |
|---|---|
| Max. Forward Voltage | 2V |
| Max. Reverse Voltage | 20V |
| Max. Forward Current | 2mA |
| Max. Reverse Current | 150mA |
| Wavelength | Down 1310/Up1490 |
| Connector | SC or FC |
Applications
- FTTx,Optical Network
Standards & compliance
- Compliant with ITU-T G984.5 telecommunication protocol
- Compliant with Telcordia GR-468 reliability test criterion
- Compliant with RoHS6 standard
