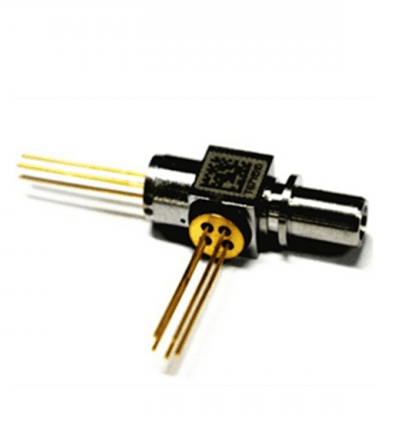

Name: DFB Down1310 1.25GUp1490 2.5G GPON OLT BOSA Receptacle
Brand: DTNT
SKU: GPON OLT BOSA

Product overview

Type: BOSA

Package Type: Receptacle

This BOSA is a high performance optical sub-assembly in single fiber by using 1310nm transmitter and 1490nm receiver.
Transmitter is DFB LD, receiver is APD-TIA diode

Chip Information:

LD: 1310nm 2.5Gpbs DFB 4PIN

PT: 1.25Gpbs APD-TIA

Product structure remarks: SC/PC ferrule sleeve assembly, machined / powder part structure, receiving end adhesive structure, without isolator.

Standard

Single package size: 46X31X29 cm
Single gross weight:5.0 kg

Package Type:

The outer box specification is 460*305*290mm, and each box can hold up to 640 products. 80 products are packed in 8 stacked;8 anti-static trays can be loaded into 80 products.

Key features

Laser welding solution
Point-to-point application
High optical isolation
High sensitivity APD-TIA
Working temperature: 0~75°C
Receptacle SC BOSA

Product details

Model Number: GPON OLT BOSA
Supply Ability: 50K PCS/Month
Packaging Details: - Selling Units:Single item

Specifications

Specification7 rows · Technical specifications

Scroll horizontally to view all columns

Specification for DFB Down1310 1.25GUp1490 2.5G GPON OLT BOSA Receptacle
Parameter	Rating
Max. Forward Voltage	2V
Max. Reverse Voltage	20V
Max. Forward Current	2mA
Max. Reverse Current	150mA
Wavelength	Down 1310/Up1490
Connector	SC or FC
Trasmission	Down 1.25G/Up 2.5G

Applications

FTTx,Optical Network

Standards & compliance

Compliant with ITU-T G984.5 telecommunication protocol
Compliant with Telcordia GR-468 reliability test criterion
Compliant with RoHS6 standard
