CSFP+ mini BOSA Digital DFB 10G Mini BOSA
BOSA
Model · DFB 10G Mini BOSA
The product is a point-to-point BOSA component with an upstream 1310/1270nm wavelength/operating rate of 10.3125Gb/s and a downstream 1270/1330nm/operating rate of 10.3125Gb/s.
- Wavelength
- 1270nm / 1330nm
- Data rate
- 10G / 10.3125G
- Package
- BOSA

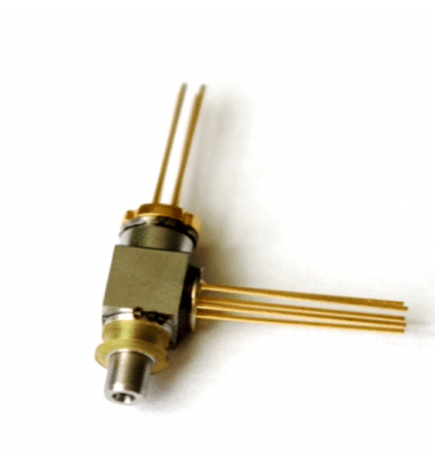

Showing image 1 of 2: CSFP+ mini BOSA Digital DFB 10G Mini BOSA
Product overview
Type:BOSA
Package Type:Receptacle
- The product is a point-to-point BOSA component with an upstream 1310/1270nm wavelength/operating rate of 10.3125Gb/s and a downstream 1270/1330nm/operating rate of 10.3125Gb/s.
- The starter uses a DFB laser and the receiving end uses a PIN-TIA diode.
Chip information:
LD: 1270nm/1330nm 10.3125Gpbs DFB 4PIN
PT: 10.3125Gpbs PIN-TIA
- Product structure remarks: LC/PC ferrule assembly, machining/powder structure, receiving end adhesive structure, with isolator.
Standard
- Single package size: 46X31X29 cm
- Single gross weight:5.0 kg
Package Type:
The outer box specification is 460*305*290mm, and each box can hold up to 640 products. 80 products are packed in 8 stacked; 8 anti-static trays can be loaded into 80 products.
Key features
- Laser welding solution
- Point-to-point application
- Uplink and downlink rates are 10.3125G
- High optical isolation
- Working temperature: -40 ° C ~ 85 ° C
- Plug-in LC BOSA
Product details
- Model Number
- DFB 10G Mini BOSA
- Supply Ability
- 50K PCS/Month
- Packaging Details
- - Selling Units:Single item
Specifications
Specification
6 rows · Technical specifications
Scroll horizontally to view all columns
| Parameter | Rating |
|---|---|
| Max. Forward Voltage | 2V |
| Max. Reverse Voltage | 15V |
| Max. Forward Current | 2mA |
| Max. Reverse Current | 120mA |
| Wavelength | Up1310/1270nm Down1270/1330nm |
| Connector | SC FC ST |
Applications
- Remote communication
- Point-to-point communication
Standards & compliance
- Compliant with GR - 326 connector eligibility criteria
- Compliant with Telcordia GR-468 reliability test criterion
- Compliant with RoHS6 standard
Custom engineering
Need a different optical or mechanical configuration?
Share the target wavelength, output or sensitivity, package, connector or pigtail, temperature range, screening, quantity, and schedule for an engineering review.
