cooling big power Laser CWDM Analog Bilateral TEC BOSA D1550nmU1450147014901510 15901610nm DFB-LD
BOSA
Model · DTNT-B-TEC
CWDM pigtail BOSA for single-fiber bidirectional links. It combines a TEC-controlled DFB transmitter with a built-in optical isolator and a 1550nm photodiode receiver. Listed transmit wavelengths are 1450/1470/1490/1510/1590/1610nm.
- Package
- BOSA

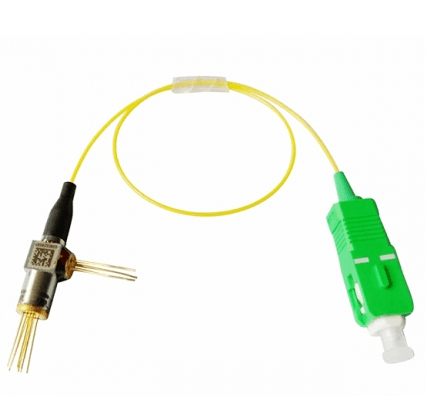

Showing image 1 of 2: cooling big power Laser CWDM Analog Bilateral TEC BOSA D1550nmU1450147014901510 15901610nm DFB-LD
Product overview
Type:Laser Diode and Photodiode
Package Type:Pigtail
- CWDM TEC laser + photodiode
- Single fiber bidirectional transceiver component
Standard
- Single package size: 46X31X29 cm
- Single gross weight:5.0 kg
Package Type:
The outer box specification is 460*305*290mm, and each box can hold up to 640 products. 80 products are packed in 8 stacked; 8 anti-static trays can be loaded into 80 products.
Key features
- The transmitter adopts miniature low-power TEC refrigeration thermostat control, temperature control accuracy of 0.1 °C, stable performance
- 1450/1470/1490/1510/1590/1610nm DFB-LD with direct modulation transmission
- Built-in optical isolator on the transmitter
- High responsivity at the receiving end, low dark current, low noise
- High out-of-band wavelength isolation
- Product stability and consistency
- Single-fiber two-way communication, system transmission capacity doubled
Product details
- Model Number
- DTNT-B-TEC
- Supply Ability
- 10K PCS/Month
- Packaging Details
- - Selling Units:Single item
Specifications
Specification
6 rows · Technical specifications
Scroll horizontally to view all columns
| Parameter | Rating |
|---|---|
| Max. Forward Voltage | 2V |
| Max. Reverse Voltage | 15V |
| Max. Forward Current | 2mA |
| Max. Reverse Current | 120mA |
| Wavelength | D1550nm/U1450/1470/1490/1510/ 1590/1610nm |
| Connector | SC FC ST |
Applications
- WDM system
- FTTH
- 1550nm downlink reception, single-fiber bidirectional transmission of 1450/1470/1490/1510/1590/1610nm uplink transmission, widely used in fiber network upgrade, capacity expansion and introduction of integrated new services.
Standards & compliance
- Meet the GR-468 reliability test standard
- RoHS compliant
- General requirements for GR-326 single mode optical connectors and jumpers
- Comply with MIL-STD-883E Method 3015.7 packaging test related standards
Custom engineering
Need a different optical or mechanical configuration?
Share the target wavelength, output or sensitivity, package, connector or pigtail, temperature range, screening, quantity, and schedule for an engineering review.
