Tap PD Photo diode detector with fiber pigtial pin diodedetector
high perfermance photodiode detector, InGaAs PD SM Single-mode (φ 0.25mm bare fiber /0.9mm loose fiber) TO46 φ 5.6*L27mm

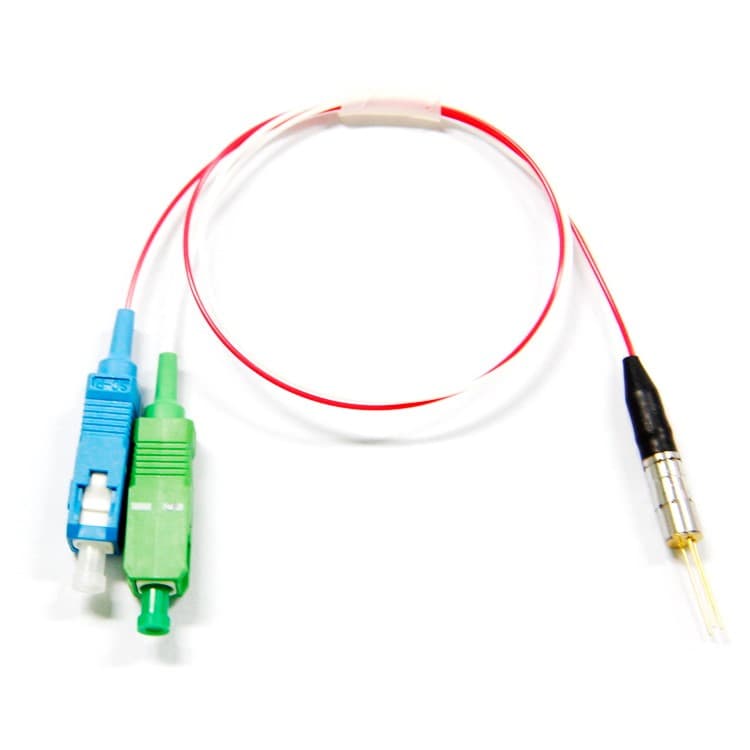

Showing image 1 of 2: Tap PD Photo diode detector with fiber pigtial pin diodedetector
Product overview
Tap-PD detector with fiber pigtial

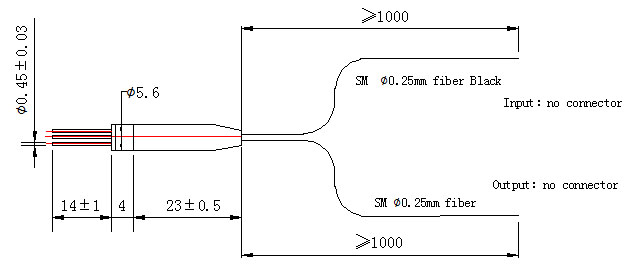

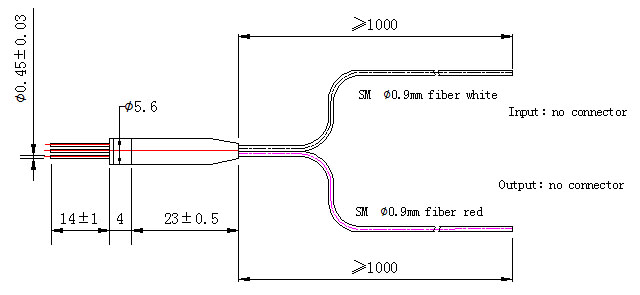

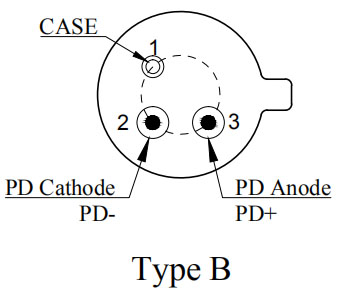

Pin Description and Package Dimensions：（mm）
size:(mm)Φ0.25mm bare fiber
Φ0.9mm loose fiber
Packing Specification
The specifications of the Antistatic boxes:320*220*15mm
The specifications of the box：335mm*240mm*60mm
The specifications of the Carton：485mm*345mm*260mm
Number of packages：14pcs/Antistatic boxes，70 pcs（5 base 1 cap）/boxes，
560 pcs（8 box）/Cartons
Key features
- InGaAs PIN photodiode,Low dark current
- Compact package,Low insertion loss
Specifications
Absolute Max imumratings6 rows · Absolute maximum ratings
Scroll horizontally to view all columns
| Parameter | Symbol | Min | Max | Unit |
|---|---|---|---|---|
| Forward current | If | — | 10 | mA |
| Reverse voltage | Vr | — | 20 | V |
| Operating temperature | Top | －5 | +70 | ℃ |
| Storage temperature | Tstg | －40 | +85 | ℃ |
| Solder Temperature | TS | — | 260 | ℃ |
| Soldering time | — | — | 10 | s |
Recommended Operating Conditions2 rows · Technical specifications
Scroll horizontally to view all columns
| Parameter | Symbol | Min | Type | Max | Unit |
|---|---|---|---|---|---|
| CaseOperatingTemperatureRange | Tc | －5 | +25 | +70 | ℃ |
| Operatingvoltage | Vcc | -24 | -5 | — | V |
Optical and Electrical Characteristics(Tc=25℃)9 rows · Test data
Scroll horizontally to view all columns
| Parameter | Symbol | Min. | Type | Max. | Unit | Test condition |
|---|---|---|---|---|---|---|
| Pass Channel Wavelength Range | λ | 1260 | — | 1625 | nm | — |
| Responsivity 1% 2% 5% 10% | R | 7 14 35 70 | — | 12 24 65 120 | mA/W | — |
| Polarization Dependent Loss | PDL | — | — | 0.1 | dB | — |
| Return loss | RL | 45 | — | — | dB | — |
| Insert loss（COM- Reflect） 1% 2% 5% 10% | IL | — | 0.2 0.4 0.6 0.9 | 0.4 0.6 0.9 1.2 | dB | — |
| Input Power Range | — | — | — | 200 | mW | — |
| Fibre type | — | — | — | — | — | SMF-28e (Φ0.25mm bare fiber/Φ0.9mm loose fiber) |
| ESD | — | — | — | 500 | V | — |
| Dark Current | Id | — | — | 1 | nA | — |
Applications
- FTTH,Communications systems.
- Optical fiber sensors,Optical test instrumentation.
