InGaAs APD & Pin photodiode

InGaAs High saturation pin diode photodiode photodetector with receptacle

InGaAs High saturation pin diode photodiode photodetector with receptacle

Package
RECEPTACLE
Request a technical quoteAsk a question

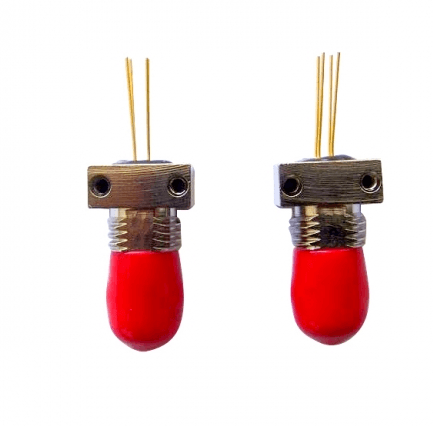

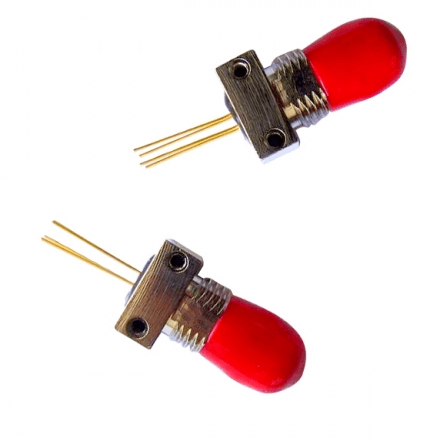

Showing image 1 of 3: InGaAs High saturation pin diode photodiode photodetector with receptacle

Product overview

InGaAs High saturation pin diode photodiode photodetector with receptacle

Type:Laser Diode

Package Type:Through Hole

Product standard

  • High saturation photodiode with receptacle

Key features

  • Low dark current,high reliability, high linearity
  • Receive light sensitive optional
  • High saturation power10dBm20dBm23dBm30dBm etc
  • Good identity for interface and receptacle

Product details

Supply Ability
100000 PCS/Month more or less
Packaging Details
- Pack in carton

Specifications

Specification5 rows · Technical specifications

Scroll horizontally to view all columns

Specification for InGaAs High saturation pin diode photodiode photodetector with receptacle
ParameterRating
Max. Forward Voltage2V
Max. Reverse Voltage20V
Max. Forward Current2mA
Max. Reverse Current2mA
ColourRed

Applications

  • Apply to vary power meter & instrument
  • Apply to optical receiver for special require

Standards & compliance

  • Match the ROSH standard
  • Match the ReACH standard

Custom engineering

Need a different optical or mechanical configuration?

Share the target wavelength, output or sensitivity, package, connector or pigtail, temperature range, screening, quantity, and schedule for an engineering review.

Send the requirement
