FP Laser diode

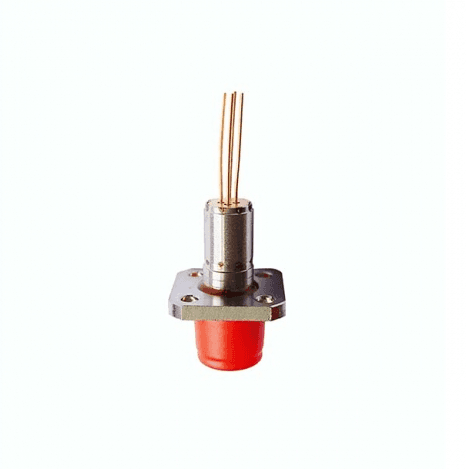

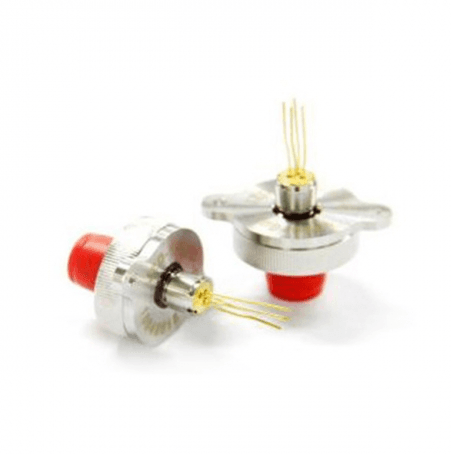

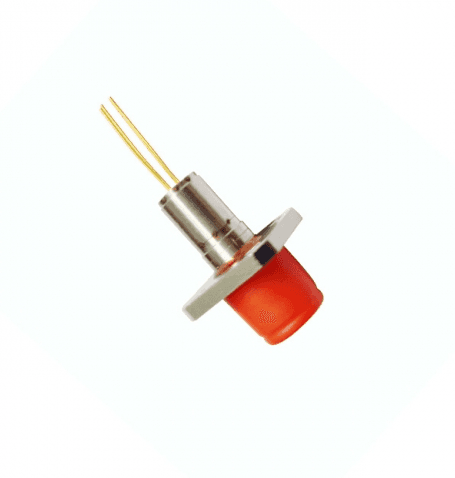

FP laser diode Analog FP 1.25GHz 1270-1610nm Coaxial Receptacle 2mW Laser Diode

Model · Coaxial Receptacle Laser Diode

Multiple working wavelengths are available in the range of 1270-1610nm, coaxial plug-in package, and a variety of fiber interfaces are available.

Wavelength: 1270-1610nm
Package: COAXIAL / RECEPTACLE

Product overview

Analog FP 1.25GHz 1270-1610nm Coaxial Receptacle 2mW Laser Diode

Model Number:Coaxial Receptacle Laser Diode
Type: Laser Diode
Package Type: Receptacle
Max. Forward Voltage: 2mA
Max. Reverse Voltage: 20V
Max. Forward Current: 100mA
Max. Reverse Current: 2V
Wavelength:1270-1610nm
Application: CATV, GSM, CDMA
Connector: SC,FC,ST

Product Standards

Single gross weight:5.0 kg

Package Type:

The outer box specification is 460*305*290mm, and each box can hold up to 640 products. 80 products are packed in 8 stacked; 8 anti-static trays can be loaded into 80 products

Key features

MQW quantum well structure, built-in monitor
Low threshold current, high slope efficiency
High linearity
Coaxial package, high reliability
Good insertion and removal performance

Product details

Supply Ability: - Supply Ability: 20000 Piece/Pieces per Week more or less
Packaging Details: - Single package size: 46X31X29 cm

Applications

Applied to short-to-medium-range optical fiber transmission systems, such as CATV reverse optical transmission, GSM, CDMA optical transmission, and monitoring systems.
Optical transceiver module
Light instrumentation

Standards & compliance

Meet the GR-468 reliability test standard
RoHS compliant
General requirements for GR-326 single mode optical connectors and jumpers

Custom engineering

Need a different optical or mechanical configuration?

Share the target wavelength, output or sensitivity, package, connector or pigtail, temperature range, screening, quantity, and schedule for an engineering review.

Send the requirement
