Analog 1310nm FP Laser Diode with Pigtail
FP Laser diode
Analog 1310nm FP Laser Diode with Pigtail
- Wavelength
- 1310nm
- Package
- PIGTAIL

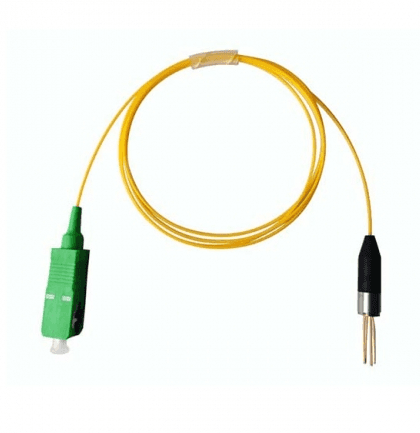

Showing image 1 of 2: Analog 1310nm FP Laser Diode with Pigtail
Product overview
Analog 1310nm FP Laser Diode with Pigtail
- Type: Laser Diode
- Package Type: Coaxial
- Certification: ISO9001
- Application: CATV
Key features
- Uncooled 1310nm FP MQW Laser Diode, Built-in InGaAs PD Monitor
- High-Speed Operation Up to 1.25Gbps
- Wide Operating Temperature Range: -40 ~ +85°C
- Laser Welding Assembly Method
- High Reliability and Long Operation Life
- Various Connector Types: SC, FC, ST, LC, and MU
Product details
- Supply Ability
- 10K PCS/Month
Product resources
Applications
- Transceiver Module
- CATV, GSM, CDMA
- Telecommunication
- Gigabit Ethernet
Custom engineering
Need a different optical or mechanical configuration?
Share the target wavelength, output or sensitivity, package, connector or pigtail, temperature range, screening, quantity, and schedule for an engineering review.
Send the requirementSame product family
Related configurations
| Product | Wavelength | Data rate | Package | Interface |
|---|---|---|---|---|
| FP laser diode Analog FP 1.25GHz 1270-1610nm Coaxial Receptacle 2mW Laser Diode | 1270-1610nm | Not listed | COAXIAL / RECEPTACLE | Not listed |
| OTDR use pluse 1310nm FP transmitter laser diode | 1310nm | Not listed | Not listed | Not listed |
