Triplexer

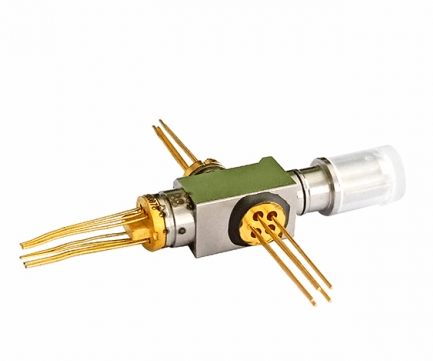

Digital DFB 10G EPON BI-Directional OLT BOSA

Model · 10G EPON BOSA

Start with 1490nm DFB laser + 1577nm EML DFB laser, and use the burst mode APD-TIA diode.

Wavelength: 1490nm / 1577nm / 1310nm
Data rate: 10G / 1.25G / 10.3125G
Package: BOSA

Product overview

Type:Laser Diode

Package Type:Receptacle

Start with 1490nm DFB laser + 1577nm EML DFB laser, and use the burst mode APD-TIA diode

Chip information:

DFB: 1490nm 1.25Gpbs DFB 4PIN

EML: 1577nm 10G 7PIN

PT: 10G/1.25Gpbs APD-TIA

Product structure remarks: SC/PC insulated ferrule assembly, machined/powder structure, receiving end adhesive structure, with isolator.

Standard

Single package size: 46X31X29 cm
Single gross weight:5.0 kg

Package Type:

The outer box specification is 460*305*290mm, and each box can hold up to 640 products. 80 products are packed in 8 stacked; 8 anti-static trays can be loaded into 80 products

Key features

Laser welding solution
10GEPON BI-Directional
High optical isolation
High sensitivity APD-TIA
Working temperature: 0°C~75°C
plug-in SC BOSA

Product details

Model Number: 10G EPON BOSA
Supply Ability: 6KK PCS/Month
Packaging Details: - Selling Units:Single item

Specifications

Specification5 rows · Technical specifications

Scroll horizontally to view all columns

Specification for Digital DFB 10G EPON BI-Directional OLT BOSA
Parameter	Rating
Max. Forward Voltage	2V
Max. Reverse Voltage	20V
Max. Forward Current	2mA
Max. Reverse Current	150mA
Wavelength	Up 1490nm,1577nm/Down 1310nm

Applications

FTTx, 10G EPON

Standards & compliance

Compliant with ITU-T G984.5 telecommunication protocol
Compliant with Telcordia GR-468 reliability test criterion
Compliant with RoHS6 standard
