CATV DFB and FP laser diode

DFB analog Laser diode 1310nm 1.25G dual-isolate DFB analog Laser diode with pigtail or receptacle

Model · DTNT-LD-13-D-ISO

1310nm 1.25G dual-isolate DFB analog Laser diode with pigtail or receptacle

Wavelength
1310nm
Data rate
1.25G
Package
PIGTAIL / RECEPTACLE
Request a technical quoteAsk a question

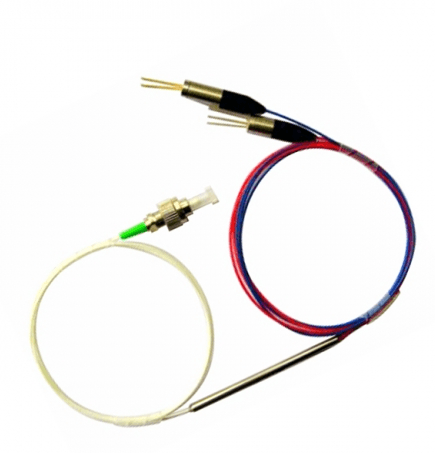

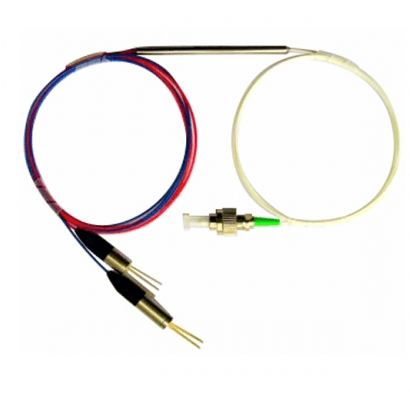

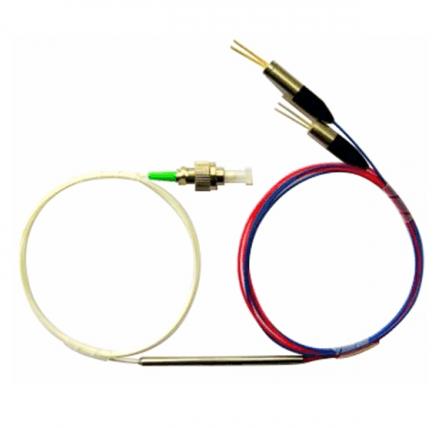

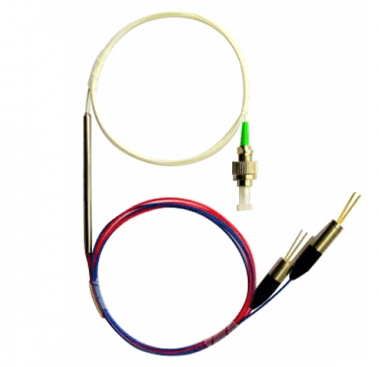

Showing image 1 of 5: DFB analog Laser diode 1310nm 1.25G dual-isolate DFB analog Laser diode with pigtail or receptacle

Product overview

Type: Laser Diode

Package Type: Through Hole

Key features

  • Uncooled 1310nm DFB MQW Laser Diode, Built-in InGaAs PD Monitor
  • High-Speed Operation Up to 1.25Gbps
  • Laser Welding Assembly Method
  • High Reliability and Long Operation Life
  • Various Connector Type: SC, FC, ST, LC, and MU
  • High-Speed: High Reliability
  • Long Operation Life: Various Connector Type

Product details

Model Number
DTNT-LD-13-D-ISO
Supply Ability
100K PCS/Month
Packaging Details
Pack in static electricity package, 10PC/Box, 100box/carton.

Specifications

Specification4 rows · Technical specifications

Scroll horizontally to view all columns

Specification for DFB analog Laser diode 1310nm 1.25G dual-isolate DFB analog Laser diode with pigtail or receptacle
ParameterRating
Max. Forward Voltage2V
Max. Reverse Voltage20V
Max. Forward Current2mA
Max. Reverse Current2mA

Applications

  • Transceiver Module
  • CATV, GSM, CDMA
  • Telecommunication
  • Gigabit Ethernet
