1310nm FP Coaxial pigtail pulse laser diode for OTDR
CATV DFB and FP laser diode
Model · DTNT-LD-FP
1310nm FP Coaxial pigtail pulse laser diode for OTDR use
- Wavelength
- 1310nm
- Package
- COAXIAL / PIGTAIL

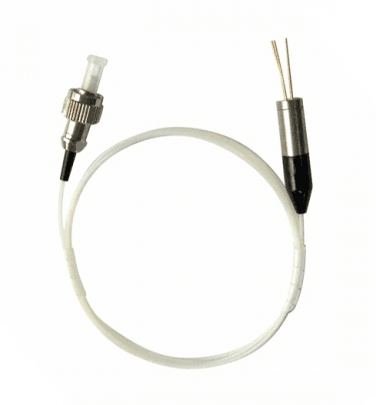

Showing image 1 of 2: 1310nm FP Coaxial pigtail pulse laser diode for OTDR
Product overview
Type:Laser Diode
Package Type:static electricity
Key features
- Uncooled 1310nm DFB MQW Laser Diode , Built-in InGaAs PD Monitor
- Laser Welding Assembly Method
- High Reliability and Long Operation Life
- Various Connector Type: SC,FC,ST,LC,MU
Product details
- Model Number
- DTNT-LD-FP
- Supply Ability
- 100K PCS/Month
- Packaging Details
- Pack in static electricity package and then carton box.
Specifications
Specification
6 rows · Technical specifications
Scroll horizontally to view all columns
| Parameter | Rating |
|---|---|
| Max. Forward Voltage | 2V |
| Max. Reverse Voltage | 20V |
| Max. Forward Current | 2mA |
| Max. Reverse Current | 2mA |
| Colour | yellow, white, blue |
| Application | monitering system |
Applications
- Transceiver Module
- Data Communication
- Telecommunication
- Gigabit Ethernet
Custom engineering
Need a different optical or mechanical configuration?
Share the target wavelength, output or sensitivity, package, connector or pigtail, temperature range, screening, quantity, and schedule for an engineering review.
