1550nm 2.5G FP Coaxial Laser diode with pigtail
CATV DFB and FP laser diode
1550nm 2.5G FP Coaxial Laser diode with pigtail
- Wavelength
- 1550nm
- Data rate
- 2.5G
- Package
- COAXIAL / PIGTAIL

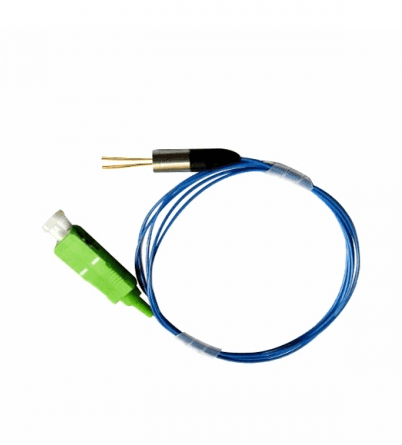

Showing image 1 of 2: 1550nm 2.5G FP Coaxial Laser diode with pigtail
Product overview
Type:Laser Diode
Package Type:static electricity
Key features
- Adopt Fabry Perot ( Multi-Quatum-Well )Structure
- FP Coaxial Package
- Built-in InGaAs monitor
- High Reliability ,Long operation life
- Laser welding fixed
- Various connector Type
- Various output power (0.5mw-4mw)
Product details
- Supply Ability
- 100K PCS/Month
- Packaging Details
- Pack in static electricity package and then carton box.
Specifications
Specification
5 rows · Technical specifications
Scroll horizontally to view all columns
| Parameter | Rating |
|---|---|
| Max. Forward Voltage | 2V |
| Max. Reverse Voltage | 20V |
| Max. Forward Current | 2mA |
| Max. Reverse Current | 2mA |
| Colour | Yellow, white, blue |
Applications
- Optical Transmitter of Data Signal
- Optical Transmitter of Analog Signal
- Optical Bidi Module and Optical Receiver
- Test Equipments
- Transceiver Module
- Telecommunication
Custom engineering
Need a different optical or mechanical configuration?
Share the target wavelength, output or sensitivity, package, connector or pigtail, temperature range, screening, quantity, and schedule for an engineering review.
