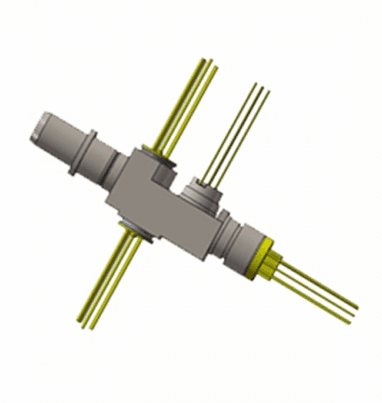

BOSA Digital 2.5G-10G 1490nm 1577nm DFB Quad Optical Combo Pon BOSA with Receptacle Digital 2.5G-10G 1490nm 1577nm DFB Quad Optical Combo Pon BOSA with Receptacle

Model · Combo Pon Bosa

The starter uses a DFB laser and the receiving end uses a PIN-TIA/APD-TIA diode.

Wavelength: 1490nm / 1577nm
Data rate: 2.5G / 10G
Package: BOSA / RECEPTACLE

Product overview

Type:Laser Diode

Package Type:Receptacle

The starter uses a DFB laser and the receiving end uses a PIN-TIA/APD-TIA diode.

Chip information:

LD: 14900nm 2.5G/s DFB and 1577nm 10G/s DFB

PT: APD-TIA and 10G APD-TIA

Product structure remarks: SC/PC ferrule assembly, machining/powder structure, receiving end adhesive structure, with isolator.

Standard

Single package size: 46X31X29 cm
Single gross weight:5.0 kg

Package Type:

The outer box specification is 460*305*290mm, and each box can hold up to 640 products. 80 products are packed in 8 stacked; 8 anti-static trays can be loaded into 80 products

Key features

Laser welding solution
1490nm and 1577nm indium gallium arsenide DFB laser diode transmission
SC connector
Independent optical channel / high optical isolation
Working temperature: -10 ° C ~ 75 ° C
10 and 2.5 Gigabit hybrid Ethernet, 10G and 2.5 G fiber hybrid channels
Receptacle SC BOSA

Product details

Model Number: Combo Pon Bosa
Supply Ability: 6KK PCS/Month
Packaging Details: - Selling Units:Single item

Specifications

Specification5 rows · Technical specifications

Scroll horizontally to view all columns

Specification for BOSA Digital 2.5G-10G 1490nm 1577nm DFB Quad Optical Combo Pon BOSA with Receptacle Digital 2.5G-10G 1490nm 1577nm DFB Quad Optical Combo Pon BOSA with Receptacle
Parameter	Rating
Max. Forward Voltage	2V
Max. Reverse Voltage	20V
Max. Forward Current	2mA
Max. Reverse Current	120mA
Wavelength	1490nm /1577nm

Applications

XGPON
XGSPON
GPON or 10G EPON
EPON Hybrid APPLICATION

Standards & compliance

Compliant with GR - 326 connector eligibility criteria
Compliant with Telcordia GR-468 reliability test criterion
Compliant with RoHS6 standard

Custom engineering

Need a different optical or mechanical configuration?

Share the target wavelength, output or sensitivity, package, connector or pigtail, temperature range, screening, quantity, and schedule for an engineering review.
