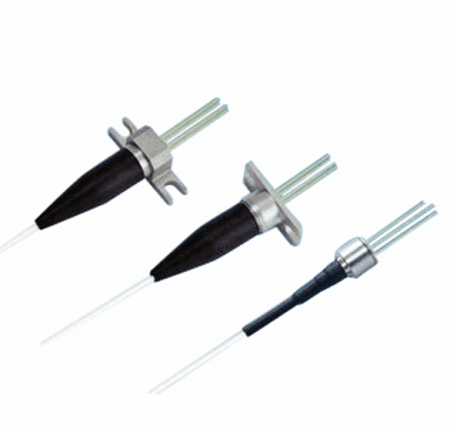

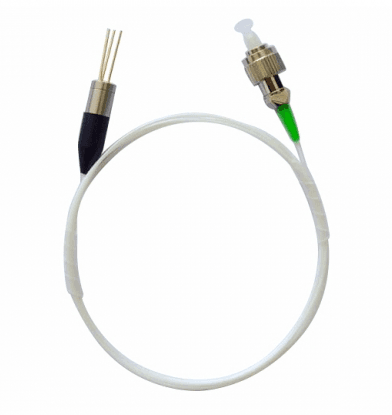

Name: avalanche photodiode for OTDR use coaxial pigtail APD avalanche Photo diode with pigtail
Brand: DTNT
SKU: DTNT-C22-APD

Product overview

Feature:Low dark current and high linearity

Application: OTDR

Key features

Low Capacitance: ≤1pF
2GHz Frequency Response
Low Dark Current, Low Back Reflection
High Responsivity: ≥0.85A/W 1310nm ≥0.90A/W 1550nm
Laser Welding, Coaxial Package
High Reliability and Long Operation Life
Various Connector Type: FC,SC,ST,LC,MU

Product details

Model Number: DTNT-C22-APD
Supply Ability: 50K PCS/Month
Packaging Details: Pack in static electricity package, according to customer packing requirement

Specifications

Absolute Maximum Rating: (Tc=25°C)5 rows · Absolute maximum ratings

Scroll horizontally to view all columns

Absolute Maximum Rating: (Tc=25°C) for avalanche photodiode for OTDR use coaxial pigtail APD avalanche Photo diode with pigtail
Parameter	Symbol	Min.	Max.	Unit
Operating Temperature Range	Top	-40	+85	°C
Storage Temperature Range	Tstg	-40	+85	°C
Soldering Temperature Tmax= 10s	Ts	-	260	°C
Forward Current	Ifd	-	10	mA
Saturation Input Power	Psat	-	10	mW

Applications

CATV Forward/Return Path
QAM 64/256 System
OTDR
FTTH Network
EDFA Monitors

Custom engineering

Need a different optical or mechanical configuration?

Share the target wavelength, output or sensitivity, package, connector or pigtail, temperature range, screening, quantity, and schedule for an engineering review.
