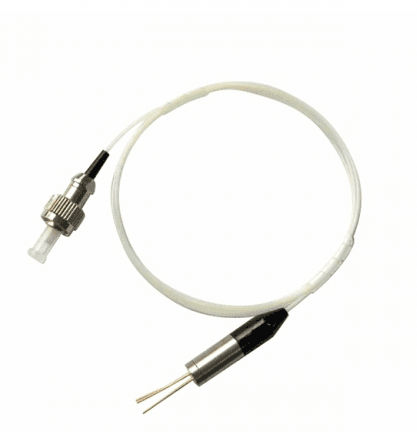

Name: 6mw DFB 1310nm pigtail laser diode
Brand: DTNT
SKU: DTNT-LD-DFB

Product overview

Type: Laser Diode

Package Type: static electricity

Key features

Uncooled 1310nm DFB MQW Laser Diode , Built-in InGaAs PD Monitor
Laser Welding Assembly Method
High Reliability and Long Operation Life
Various Connector Type: SC,FC,ST,LC,MU

Product details

Model Number: DTNT-LD-DFB
Supply Ability: 6KK PCS/Month
Packaging Details: Pack in static electricity package and then carton box ,100pcs/Box.

Specifications

Specification6 rows · Technical specifications

Scroll horizontally to view all columns

Specification for 6mw DFB 1310nm pigtail laser diode
Parameter	Rating
Max. Forward Voltage	2V
Max. Reverse Voltage	20V
Max. Forward Current	2mA
Max. Reverse Current	2mA
Colour	yellow, white, blue
Application	monitering system

Specification11 rows · Test data

Scroll horizontally to view all columns

Specification for 6mw DFB 1310nm pigtail laser diode
Parameter	Symbol	Min	Type	Max	Unit	Test Condition
Threshold Current	Ith	5	--	15	mA	CW
Forward Voltage	Vop	—	1.1	1.6	V	CW,If=Iop
Optical Output Power	Pf	--	2.0	10	mW	CW,If=Ith+20mA
Center Wavelength	λc	λ-3	1310	λ+3	nm	CW,P0 = Pf
Wavelength temperature coefficient	λ/T	--	0.10	0.14	nm/°C	—
Rise/Fall Time(10~90)%	Tr/Tf	--	--	0.4	nS	If=Ith,Po=Pf(10-90)%
Slope Efficiency	SE	0.25	--	--	mW/mA	P0 =5.0mW 1270-1450nm,CW
Monitor Current	Im	0.1	—	1	mA	CW,P0 = Pf
Capacitance PD	CPD	—	10	15	PF	VRD=5V
PD Dark Current	Id	—	—	1	nA	VRD=5V
Side Mode Suppression Ration	SMSR	30	35	—	dB	CW,Po=5mW

Applications

Transceiver Module
Data Communication
Telecommunication
Gigabit Ethernet
Monitor CurrentIm0.1 1mACW,P0 = PfCapacitance PDCPD 1015PFVRD=5VPD Dark CurrentId 1nAVRD=5VSide Mode Suppression RationSMSR3035 dBCW,Po=5mW

Custom engineering

Need a different optical or mechanical configuration?

Share the target wavelength, output or sensitivity, package, connector or pigtail, temperature range, screening, quantity, and schedule for an engineering review.

Send the requirement
