TOSA Analog DFB 1.25GHz 1270-1610nm Coaxial Receptacle 2mW Laser Diode
Multiple working wavelengths are available in the range of 1270-1610nm, coaxial plug-in package,and a variety of fiber interfaces are available.
- Wavelength
- 1270-1610nm
- Package
- TOSA / COAXIAL / RECEPTACLE

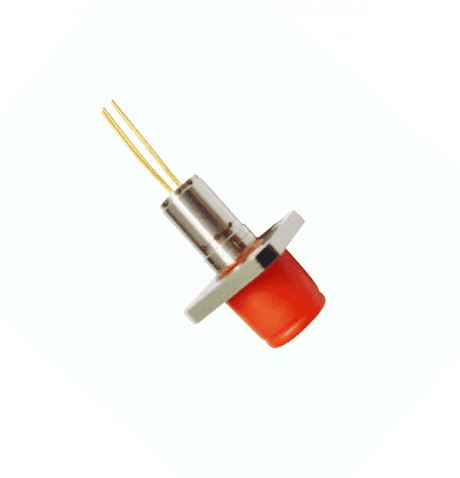

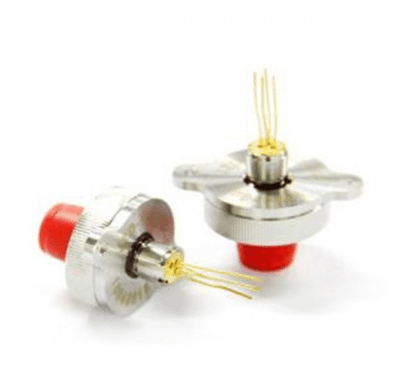

Showing image 1 of 3: TOSA Analog DFB 1.25GHz 1270-1610nm Coaxial Receptacle 2mW Laser Diode
Product overview
Analog DFB 1.25GHz 1270-1610nm Coaxial Receptacle 2mW Laser Diode
- Type: Coaxial Receptacle LD Laser Diode
- Package Type: Receptacle
- Max. Forward Voltage: 2mA
- Max. Reverse Voltage: 20V
- Max. Forward Current: 100mA
- Max. Reverse Current: 2V
- Wavelength:1270-1610nm
- Application: CATV, GSM, CDMA
- Connector: SC,FC,ST
Product Standards
Single gross weight:5.0 kg
1.Absolute Maximum Ratings
2.Transmitter Electro-Optical Characteristics(TC=25℃，CW）

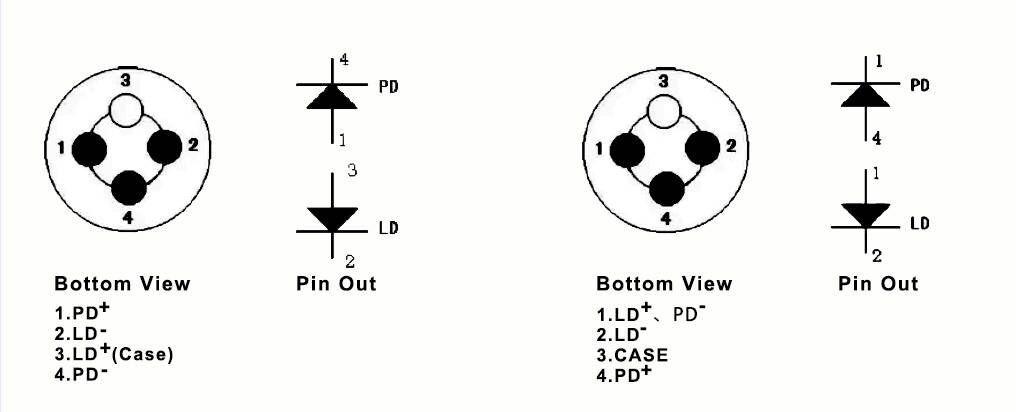

3.Pin Assignment

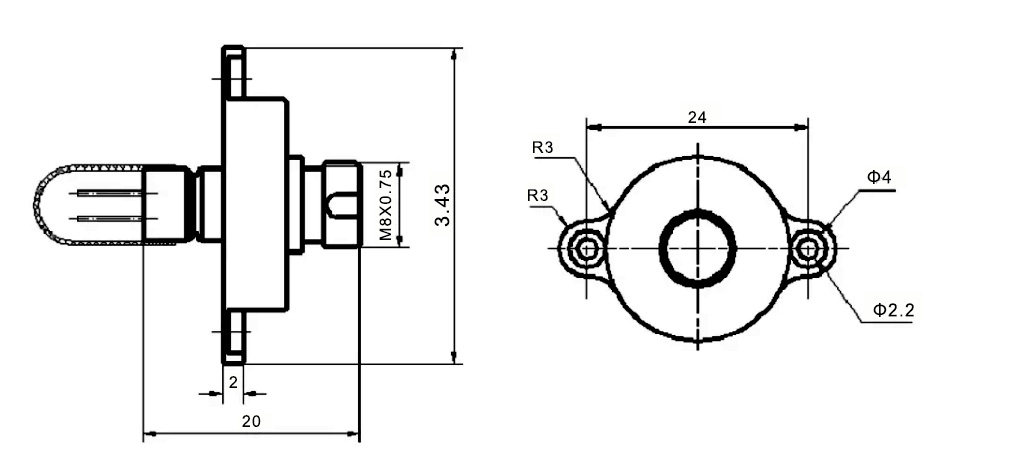

4.Dimension Outline
Package Type:
The outer box specification is 460*305*290mm, and each box can hold up to 640 products. 80 products are packed in 8 stacked; 8 anti-static trays can be loaded into 80 products
Key features
- MQW quantum well structure, built-in monitor
- Low threshold current, high slope efficiency
- High linearity
- Coaxial package, high reliability
- Good insertion and removal performance
Product details
- Supply Ability
- 20000 Piece/Pieces per Week more or less
- Packaging Details
- Single package size: 46X31X29 cm
Specifications
Absolute Maximum Ratings6 rows · Absolute maximum ratings
Scroll horizontally to view all columns
| Item | Unit | Min | Max | Note |
|---|---|---|---|---|
| Reverse Voltage(Laser diode) | mW | — | 2 | VRL |
| Forward current(Laser diode) | mA | — | 100 | IFL |
| Reverse Voltage(Photodiode) | V | — | 20 | VRD |
| Forward current(Photodiode) | ℃ | — | 2 | IFD |
| Operating temperature | ℃ | -40 | +85 | TC |
| Storage temperature | ℃ | -40 | +100 | Tstg |
Transmitter Electro-Optical Characteristics(TC=25℃，CW）13 rows · Test data
Scroll horizontally to view all columns
| Item | Symbol | Test Condition | Min. | Typ. | Max. | Unit |
|---|---|---|---|---|---|---|
| Treshold Current | Ith | T=25℃ T=85℃ | — | 10 35 | 15 55 | mA |
| Operating Current | Iop | T=25℃ | — | 45 | 48 | mA |
| Operating Voltage | Vop | CW，IFL=lth+20mA | — | 1.2 | 1.6 | V |
| Monitor Current | Imcn | lop=ith+20mA | 120 | — | 1000 | uA |
| MonitorDark Current | ID | VPD=5V | — | — | 200 | nA |
| Monitor Capacitance | CpD | VPD=5V | — | — | 10 | pF |
| -3dB Bandwidth | FR | PVo=5.0 mW | 1.25 | — | — | GHz |
| Side Mode Suppression Ratio | SMSR | P,2.5Gbps,Imod=40mA,lb=0.9*lth | 30 | 40 | — | dB |
| Optical Output | Po | If=Ith+20mA | 1 | — | 2 | mW |
| Slope Efficiency | η | — | 0.05 | — | 0.10 | mW/mA |
| Center Wavelength | λc | FP:Po=5.0 mW,T=25℃，λc=1270-1610 | λc-30 | λc | λc+30 | nm |
| Center Wavelength | λc | DFB:Po=5.0 mW,T=25℃，λc=1270-1610 | λc-10 | λc | λc+10 | nm |
| Center Wavelength | λc | CWDM DFB:Po=5.0 mW,T=25℃，λc=1270-1610 | λc-3 | λc | λc+3 | nm |
Applications
- Applied to short-to-medium-range optical fiber transmission systems, such as CATV reverse optical transmission, GSM, CDMA optical transmission, and monitoring systems.
- Optical transceiver module
- Light instrumentation
Standards & compliance
- Meet the GR-468 reliability test standard
- RoHS compliant
- General requirements for GR-326 single mode optical connectors and jumpers
- Match the ROSH standard
- Match the REACH standard
Custom engineering
Need a different optical or mechanical configuration?
Share the target wavelength, output or sensitivity, package, connector or pigtail, temperature range, screening, quantity, and schedule for an engineering review.
Send the requirementSame product family
