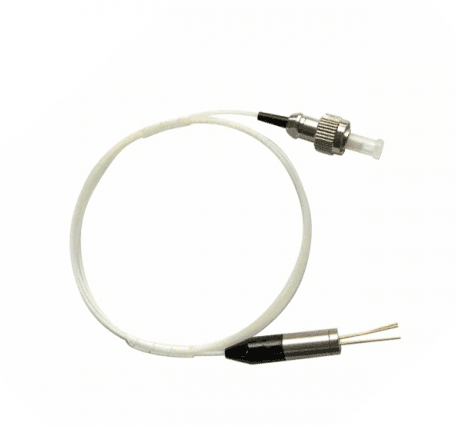

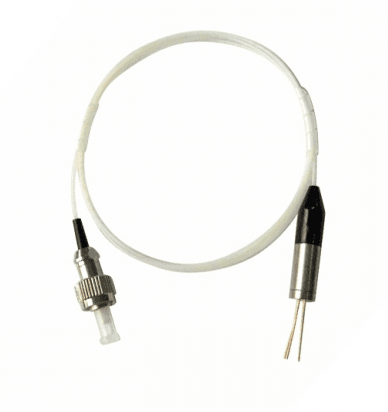

Name: Coaxial 8mw DFB 1310nm laser diode with pigtail
Brand: DTNT

Product overview

Coaxial 8mw DFB 1310nm/1550 laser diode with pigtail

Type:Laser Diode

Package Type:static electricity

100pcs/Box

Key features

Uncooled 1310nm/1550nm DFB MQW Laser Diode , Built-in InGaAs PD Monitor
Laser Welding Assembly Method
High Reliability and Long Operation Life
Various Connector Type: SC,FC,ST,LC,MU

Product details

Supply Ability: 10K PCS/Month
Packaging Details: - Pack in static electricity package and then carton box

Specifications

Specification5 rows · Technical specifications

Scroll horizontally to view all columns

Specification for Coaxial 8mw DFB 1310nm laser diode with pigtail
Parameter	Rating
Max. Forward Voltage	2V
Max. Reverse Voltage	20V
Max. Forward Current	2mA
Max. Reverse Current	Ith+20DC
Colour	yellow, white, blue

Specification11 rows · Test data

Scroll horizontally to view all columns

Specification for Coaxial 8mw DFB 1310nm laser diode with pigtail
Parameter	Symbol	Min	Type	Max	Unit	Test Condition
Threshold Current	Ith	5	--	15	mA	CW
Forward Voltage	Vop	—	1.1	1.6	V	CW,If=Iop
Optical Output Power	Pf	--	2.0	10	mW	CW,If=Ith+20mA
Center Wavelength	λc	λ-3	1310/1550	λ+3	nm	CW,P0 = Pf
Wavelength temperature coefficient	λ/T	--	0.10	0.14	nm/°C	—
Rise/Fall Time(10~90)%	Tr/Tf	--	--	0.4	nS	If=Ith,Po=Pf(10-90)%
Slope Efficiency	SE	0.25	--	--	mW/mA	P0 =5.0mW 1270-1450nm,CW
Monior Current	Im	0.1	—	1	mA	CW,P0 = Pf
Capacitance PD	CPD	—	10	15	PF	VRD=5V
PD Dark Current	Id	—	—	1	nA	VRD=5V
Side Mode Suppression Ration	SMSR	30	35	—	dB	CW,Po=5mW

Product resources

Related resourceLaser Diode

Applications

Transceiver Module
Data Communication
Telecommunication
Gigabit Ethernet

Custom engineering

Need a different optical or mechanical configuration?

Share the target wavelength, output or sensitivity, package, connector or pigtail, temperature range, screening, quantity, and schedule for an engineering review.
