PWDM+PD
Analog U1550 1490/D1310 PON-PD Three-Wavelengths Photodiode FWDM PD
Model · DTNTPON-PD

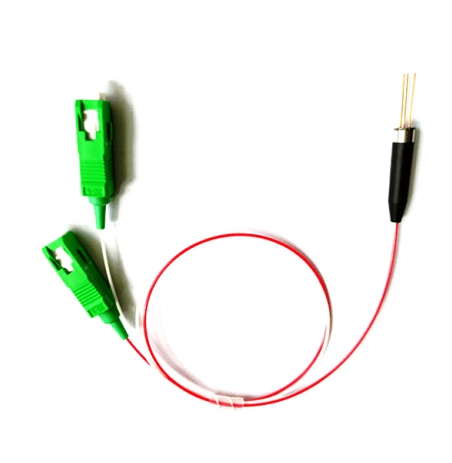

Analog U1550 1490/D1310 PON-PD Three-Wavelengths Photodiode Module.
Product overview
Package Type:Pigtail
It can realize the combining (multiplexing) and splitting (demultiplexing) of 1550, 1490/1310 two communication window optical signals, so that the single fiber transmission capacity can be doubled, and single-fiber bidirectional communication can be realized, which is widely used in optical fiber networks. Upgrade, expand and introduce integrated new services (wide-package TV, telecommunications, Internet triple play PON+EOC).Wavelength division multiplexer + photodetector assembly.
Product Standards
- Single package size: 46X31X29 cm
- Single gross weight:5.0 kg
Package Type:
The outer box specification is 460*305*290mm, and each box can hold up to 640 products. 80 products are packed in 8 stacked; 8 anti-static trays can be loaded into 80 products.
Key features
- High responsivity
- Low dark current
- High wavelength bandwidth isolation
- Product stability and consistency
Product details
- Model Number
- DTNTPON-PD
- Supply Ability
- 100K PCS/Month
- Packaging Details
- - Selling Units:Single item
Specifications
Specification5 rows · Technical specifications
Scroll horizontally to view all columns
| Parameter | Rating |
|---|---|
| Max. Forward Voltage | 2V |
| Max. Reverse Voltage | 20V |
| Max. Forward Current | 10mA |
| Wavelength | U1550 1490/D1310 |
| Connector | SC,FC,ST |
Applications
- WDM system
Standards & compliance
- Meet the GR-468 reliability test standard
- RoHS compliant
- General requirements for GR-326 single mode optical connectors and jumpers
Custom engineering
Need a different optical or mechanical configuration?
Share the target wavelength, output or sensitivity, package, connector or pigtail, temperature range, screening, quantity, and schedule for an engineering review.
Send the requirement
