2.5G DFB Laser Diode 1310nm DFB Laser Diode with receptacle
2.5G 1310nm DFB Laser Diode with receptacle
- Wavelength
- 1310nm
- Data rate
- 2.5G
- Package
- RECEPTACLE

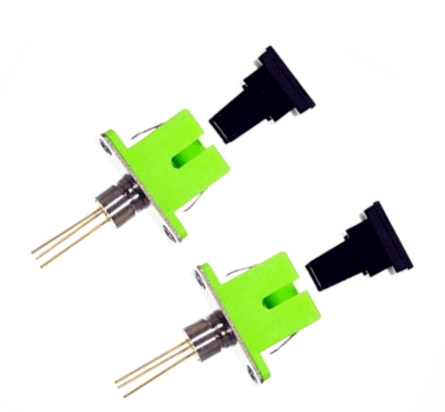

Showing image 1 of 2: 2.5G DFB Laser Diode 1310nm DFB Laser Diode with receptacle
Product overview
Type: Laser Diode
Package Type: static electricity package
- High-Speed;High Reliability and Long Operation Life;
- Low threashold current and high operation temperature
Absolute Maximum rating
Product standard
Key features
- Uncooled 1310nm Fabry-Perot MQW Laser Diode, Built-in InGaAs PD Monitor
- High-Speed Operation Up to 1.25Gbps
- Wide Operating Temperature Range: -40-+85
- Laser Welding Assembly Method
- High Reliability and Long Operation Life
- Various Connector Type: SC, FC, ST, LC, MU
Product details
- Supply Ability
- 100K PCS/Month
- Packaging Details
- Pack in static electricity package, 50PC in one box, and put in carton box.
Specifications
Specification4 rows · Technical specifications
Scroll horizontally to view all columns
| Parameter | Rating |
|---|---|
| Max. Forward Voltage | 2V |
| Max. Reverse Voltage | 20V |
| Max. Forward Current | 2mA |
| Max. Reverse Current | 2mA |
Absolute Maximum rating7 rows · Absolute maximum ratings
Scroll horizontally to view all columns
| parameter | symbol | value of parameter | unit |
|---|---|---|---|
| LD forward current | If(LD) | Ith+40DC2 | mA |
| LD reverse voltage | Vr(LD) | 2 | V |
| PD operation current | If(PD) | 2 | mA |
| PD reverse voltage | Vr(PD) | 20 | V |
| operation temperature | Topr | -20+65 | — |
| Storage temperature | Tstg | -40+85 | — |
| lead solderingtemperature | Tsld | 260/10 | /s |
Specifications9 rows · Test data
Scroll horizontally to view all columns
| parameter | symbol | Min | Typ. | Max | Unit | Test condition |
|---|---|---|---|---|---|---|
| Optical output power | P0 | — | 1.5 | — | mW | If=Ith+20mA |
| Threshold current | Ith | — | 6 | — | mA | CW |
| operation current | If | — | — | 40 | mA | CW |
| operation voltage | V0 | — | 1.1 | 1.5 | V | If=lop |
| central wavelength | λc | — | 1310 | — | Nm | If=Iop |
| Rise time/fall time1090 | Tr/Tf | — | 0.3 | 0.5 | ns | If=I |
| Monitor current | Im | — | 0.3 | — | mA | If=Iop |
| PD terminal capacitance | CPD | — | — | 10 | PF | If=I |
| Transmitting rate | fc | — | 2.5 | — | Gbit/s | If=lop |
Applications
- Transceiver Module
- Data Communication
- Telecommunication
- Gigabit Ethernet
Standards & compliance
- Match the ROSH standard
- Match the REACH standard
Custom engineering
Need a different optical or mechanical configuration?
Share the target wavelength, output or sensitivity, package, connector or pigtail, temperature range, screening, quantity, and schedule for an engineering review.
