ROSA

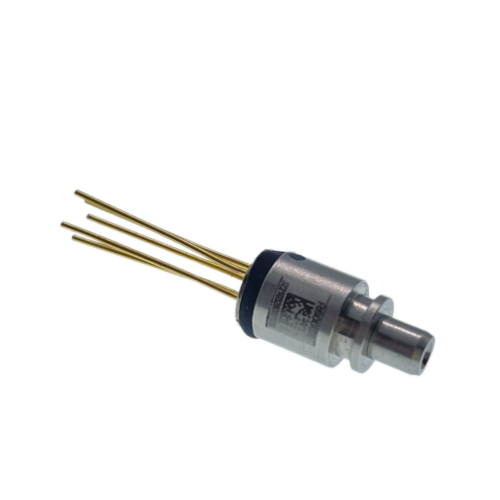

25G ROSA
Item No.: 212
Description
Receiver Electro-Optical Characteristics (TC=25°C, Vcc=3.3V) | |||||||
Item | Symbol | Test Condition | Min. | Typ. | Max. | Unit |
|
Operation Wavelength | λ | T1270/R1310 | 1300 | 1310 | 1320 | nm |
|
|
| T1330/R1270 | 1260 | 1270 | 1280 | nm |
|
Saturation Power | PSAT | 25Gbps, PRBS=2^31-1, ER≥ | 3 | --- | --- | dBm |
|
Sensitivity @155.52M | Sen | 25Gbps, PRBS=2^31-1, ER≥ | --- |
| -11.5 | dBm |
|
|
| 4dB,BER≤10-12,CW |
|
|
|
|
|
Optical Return Loss | ORL | λ=1270/1330nm | -- | --- | -20 | dB |
|
Optical Crosstalk | XTALK | 1270nm/1310nm |
| --- | -40 | dB | |
