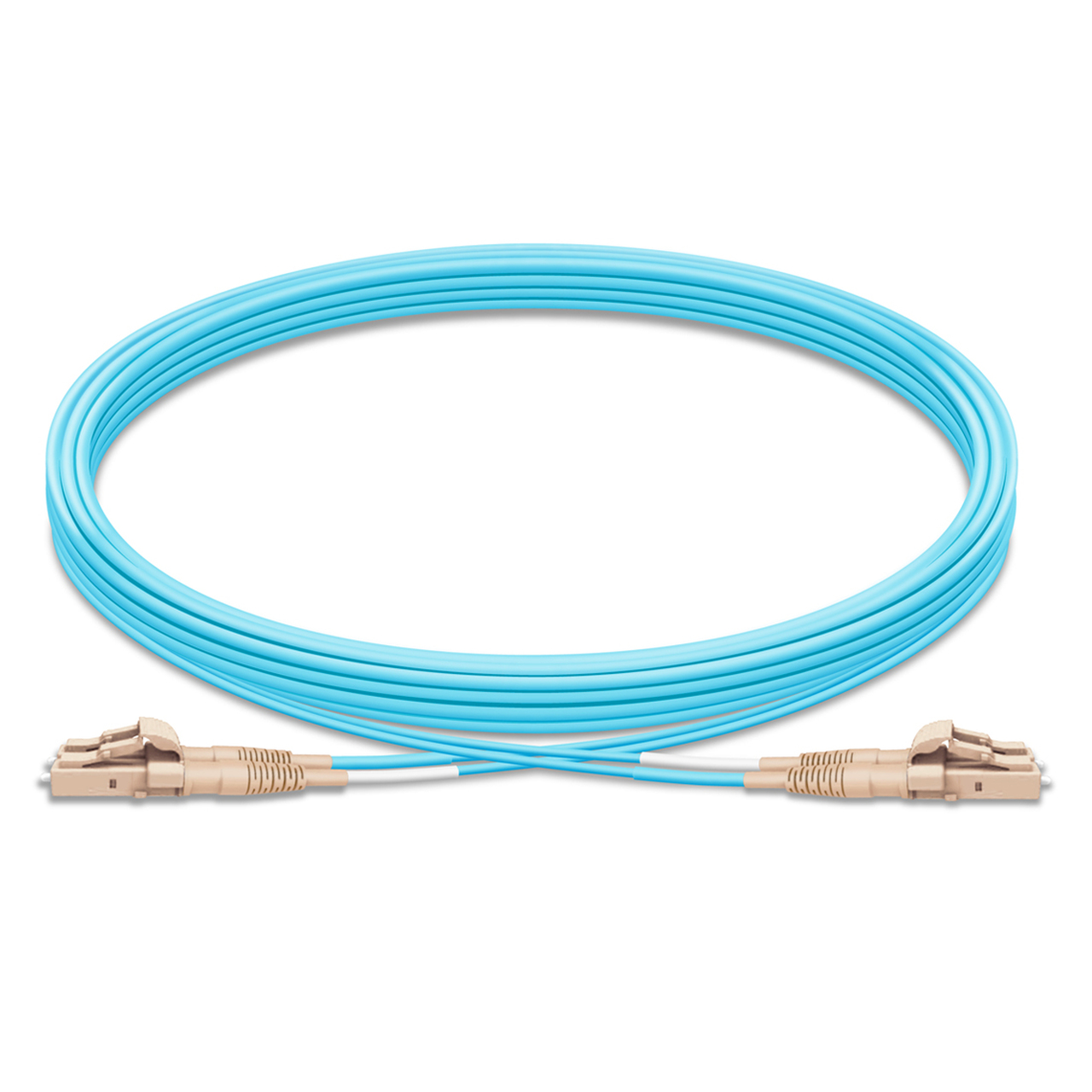

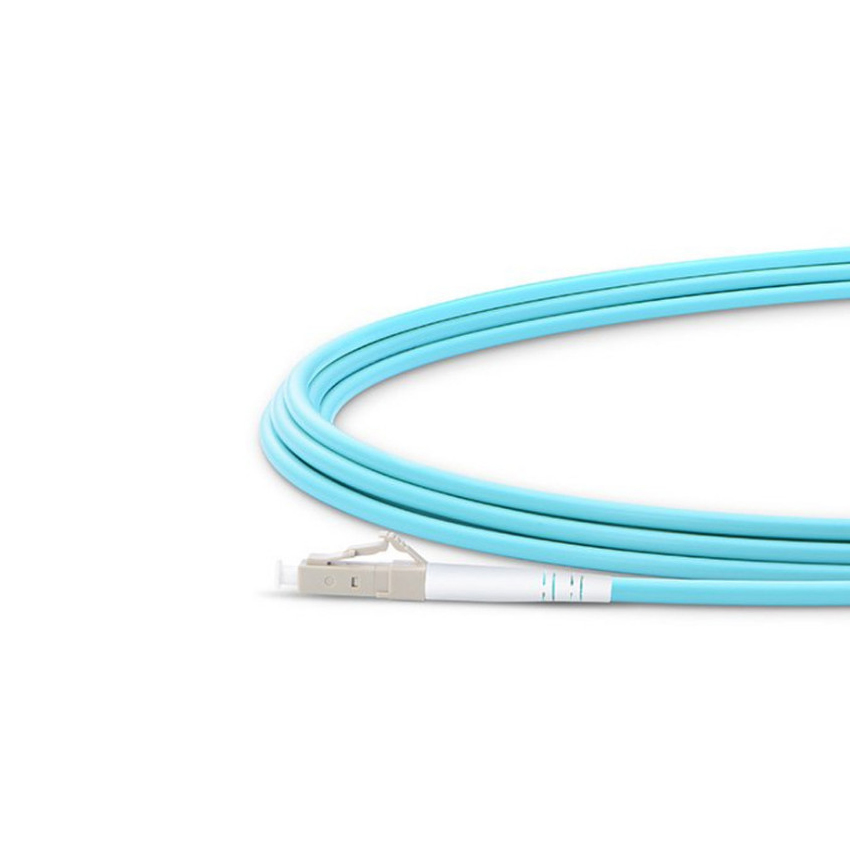

1M 2M 10M Fiber Optic Cable 2mm Duplex Multimode Optic Fiber Patch Cord LC to LC OM3 MM 50/125 Aqua

Item No.: 210

Add to Inquiry

Description

Connector Type	Single Mode (UPC)	Single Mode (APC)	Multi Mode (UPC)
Insertion Loss	≤0.2dB or ≤0.15 dB	≤0.2dB or ≤0.15 dB	≤0.3dB or ≤0.15 dB
Return Loss	UPC ≥50dB	APC ≥60dB	UPC≥30dB
Test Wavelength	Attenuation at 1310 nm = 0.36 dB/km		850nm
	Attenuation at 1550 nm = 0.22 dB/km		1300nm
Ferrule Material	Zirconia Ceramic
Ferrule Concentricity	≤0.5μ or ≤1μ		≤1μ
Jacket Material	PVC,LSZH,OFNR
Fiber Type	9/125 G652D		62.5/125-OM1
	9/125 G657A1/G657A2		50/125-OM2
	9/125 G657B2/G657B3		50/125-OM3
	…… ……		50/125-OM4
			50/125-OM5
Cord Type	Simplex,Duplex,4 cores,6 cores,12 cores,24 cores ……
Cable Diameter	0.9mm,2.0mm,3.0mm
Component	Yellow, green, light blue, beige, black,white,blue or customized
Length	1m,2m,3m,5m or customized
Storage Temperature	-40°C~80°C
Operating Temperature	-40°C~75°C
ROHS2.0	Yes or based on customized requirement

Product Display

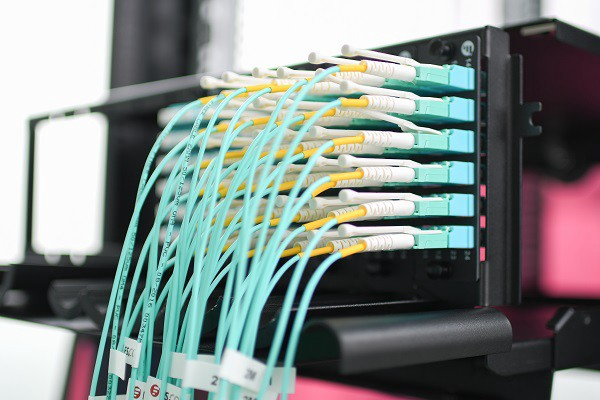

OM3 fiber jumper cable is a type of optical fiber mostly used for communication over short distances, such as within a building or on a campus. Multi-mode links can be used for data rates up to 100 Gbit/s.

Single mode fiber distance

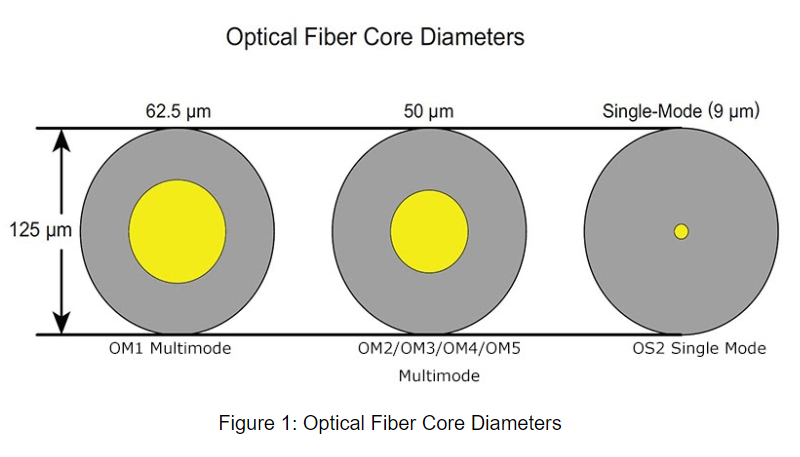

Fiber Type	Core Diameter	1Gb Ethernet	10 Gb Ethernet	40 Gb Ethernet	100 Gb Ethernet
OM1 multimode	62.5/125	275 m	33 m	Not support	Not support
OM2 multimode	50/125	550 m	82 m	Not support	Not support
OM3 multimode	50/125	550 m	300 m	100 m	100 m
OM4 multimode	50/125	550 m	400 m	150 m	150 m
OM5 multimode	50/125	550 m	400 m	150 m	150 m
Singlemode	9/125	up to 2KM using PSM4 transcever

Singlemode 9/125 up to 2KM using PSM4 transcever.

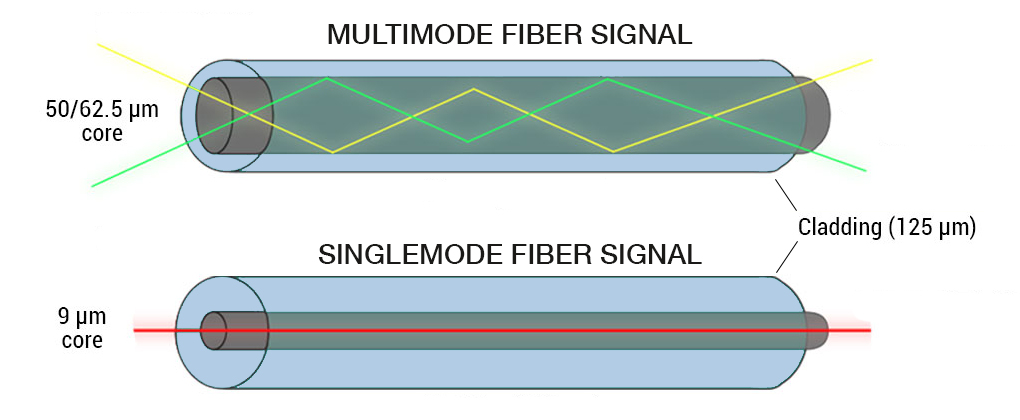

Single mode vs multimode fiber optic cable, it can conclude that single-mode fiber cabling system is suitable for long-reach data transmission applications and widely deployed in carrier networks, MANs and PONs. Multimode fiber cabling system has a shorter reach and is widely deployed in enterprise, data centers and LANs.
