MPO patch cord MPO To LC 24 48 96 Core Multimode / Single Mode Breakout Fiber Optical Cable MPO To LC LSZH optical jumper

Item No.: 208

Add to Inquiry

Description

MPO 0.35dB IL, LC 0.2dB IL; 2.0mm fan-out diameter & 0.5m breakout length, 3.0mm LSZH cable jacket. MPO Breakout cable is designed for 40GBASE-SR4 interconnect solution and high-density data center

Description :

We supply MTP to LC single mode fan-out/breakout cables assemblies, and MPO to LC fiber optic break out cables. These are available in Female or Male MTP or MPO connectors. Options are MPO-LC, MPO-LC/APC, MTP/APC-LC, MTP/APC-LC/APC. The total cable length, the fan length, the diameter of the fan tube can be 2.0mm, 900um, .9mm, 3.0mm or even a bare fiber or bare ribbon configuration. A UPC,APC,PC single mode or multimode ribbon cable assemblies. The MPO/MTP single mode fan-out, breakout cables are ideal connection to patch panels and data distribution routing. These can be made with 12 fiber MTP connectors, 24 Fiber MTP connectors, 48 Fiber MTP connector variations.

MPO Fanout Hybrid Patch Cord is mainly used to connect QSFP and SFP modules,or MPO and the LC connectors.Normally OD of the fan out cables is 2.00mm.

MPO patch cord is used for signal transmission, both sides are MPO connectors. Common cables are round type, and fiber counts are 12/24/36/48/72/144cores.

MPO to LC Breakout cables are your best choice for high density fiber networks. It's specifically designed for fast ethernet, fiber channel, data center and gigabit ethernet applications. This 12 Fiber harness cable is used for connecting (6) SFP+ into a MPO adapter panel and MPO trunk.

Characteristics:
1.Constructed of high-quality
2.Push-pull latching.
3.Easy assembly, no crimp tool needed

4.Alignment achieved with high precision guide pins
5.Ferrules are available for SM Standard,SM Low Loss /MM Standard,MM Low Loss。
6.Cable are available for Jacket ribbon,Bare ribbon, Round mini Cable.
7.High Return Loss;Low Insertion Loss.

8.High precision guide pins for exact alignment

9.Compliant to IEC61754-7 Compliant;Telcordia GR-1435-CORE

Application:
1)Data communication network
2)Optical system access network
3)Storage area network fiber channel
4)High density architectures

5)Short distance connections within a single rack or cabinet.

Storage/Operating Temperature: -40°C to + 85°C

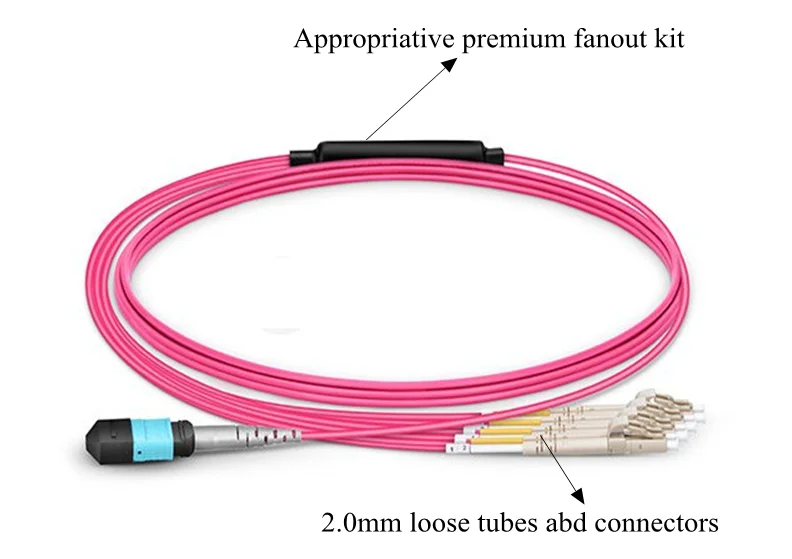

Detailed Image

Technical Parameters

Fiber Type	Single Mode G652D /Multimode om1 om2 om3 om4
Fiber Count	4/8/12/24/48/72/96/144 Core
Cable Diamter	0.9mm/2.0mm /3.0mm
Cable Jacket	PVC/LSZH/OFNR
Cable Length	1m/2m/5m/10m/25m/30m/50m/100m can be customized
Connector type	UPC /APC
