DFB Laser diode

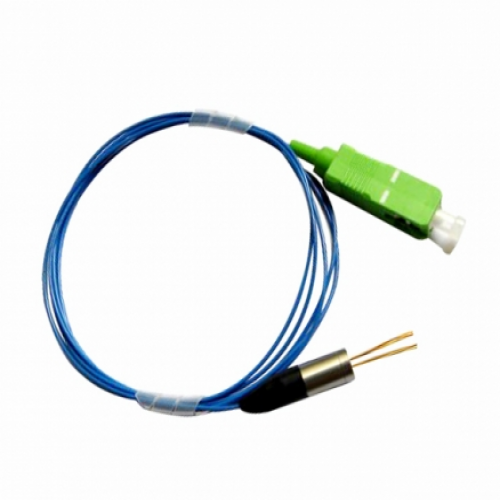

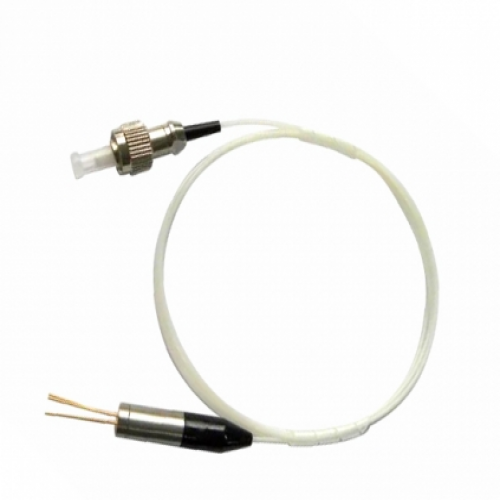

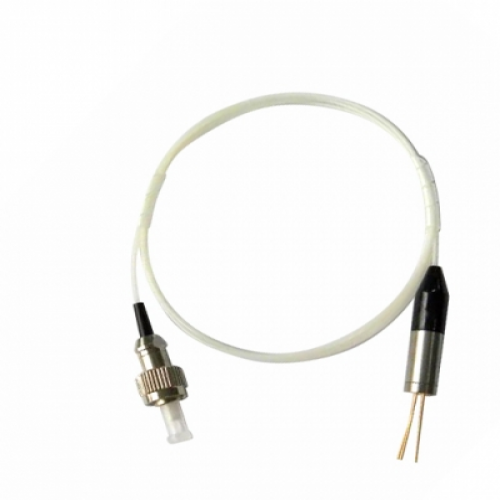

InGaAs coaxial pigtail laser diode DFB wavelength 1310nm 10mw
Item No.: 204
InGaAs coaxial pigtail laser diode DFB wavelength 1310nm 10mwIngaas laser diode/DFB laser diode/1310nm laser diode
Description
InGaAs coaxial pigtail laser diode DFB wavelength 1310nm 10mw
Product details
Type:Laser DiodePackage Type:static electricity
Specification
| Parameter | Rating |
| Max. Forward Voltage | 2V |
| Max. Reverse Voltage | 20V |
| Max. Forward Current | 2mA |
| Max. Reverse Current | Ith+20DC |
| Colour | yellow, white, blue |
Features
- Uncooled 1310nm DFB MQW Laser Diode , Built-in InGaAs PD Monitor
- Laser Welding Assembly Method
- High Reliability and Long Operation Life
- Various Connector Type: SC,FC,ST,LC,MU
Applications
- Transceiver Module
- Data Communication
- Telecommunication
- Gigabit Ethernet
Supply Ability
20000 Piece/Pieces per Week more or less
Packaging Details
- Pack in static electricity package and then carton box
- 100pcs/Box
- Uncooled 1310nm DFB MQW Laser Diode , Built-in InGaAs PD Monitor
- Laser Welding Assembly Method
- High Reliability and Long Operation Life
- Various Connector Type: SC,FC,ST,LC,MU
Applications
- Transceiver Module
- Data Communication
- Telecommunication
- Gigabit Ethernet
Supply Ability
20000 Piece/Pieces per Week more or less
Packaging Details
- Pack in static electricity package and then carton box
- 100pcs/Box
Parameter | Symbol | Min | Type | Max | Unit | Test Condition |
Threshold Current | Ith | 5 | -- | 15 | mA | CW |
Forward Voltage | Vop |
| 1.1 | 1.6 | V | CW,If=Iop |
Optical Output Power | Pf | -- | 2.0 | 10 | mW | CW,If=Ith+20mA |
Center Wavelength | λc | λ-3 | 1310 | λ+3 | nm | CW,P0 = Pf |
Wavelength temperature coefficient | λ/T | -- | 0.10 | 0.14 | nm/°C |
|
Rise/Fall Time(10~90)% | Tr/Tf | -- | -- | 0.4 | nS | If=Ith,Po=Pf(10-90)% |
Slope Efficiency | SE | 0.25 | -- | -- | mW/mA | P0 =5.0mW 1270-1450nm,CW |
Monior Current | Im | 0.1 |
| 1 | mA | CW,P0 = Pf |
Capacitance PD | CPD |
| 10 | 15 | PF | VRD=5V |
PD Dark Current | Id |
|
| 1 | nA | VRD=5V |
Side Mode Suppression Ration | SMSR | 30 | 35 |
| dB | CW,Po=5mW |
