OTDR use pluse 1310nm FP transmitter laser diode

Item No.: 200

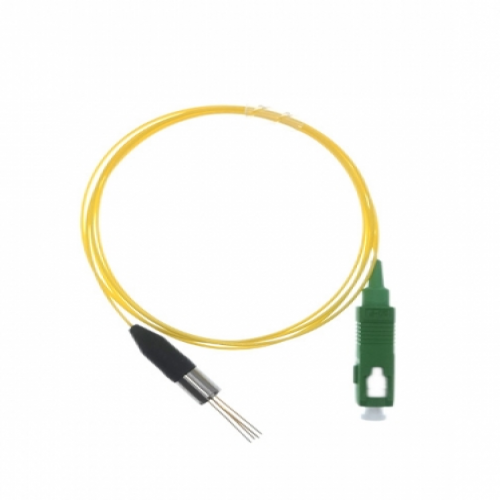

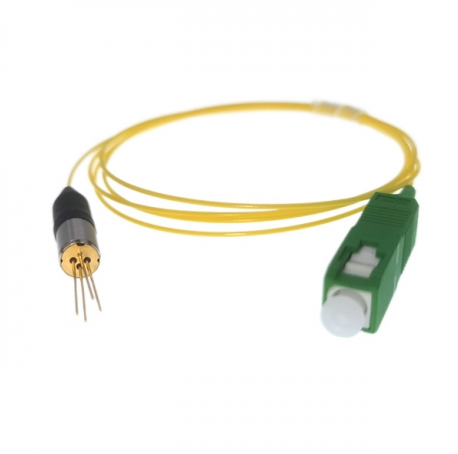

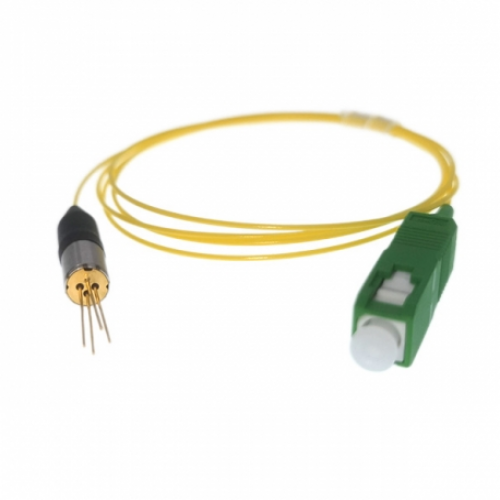

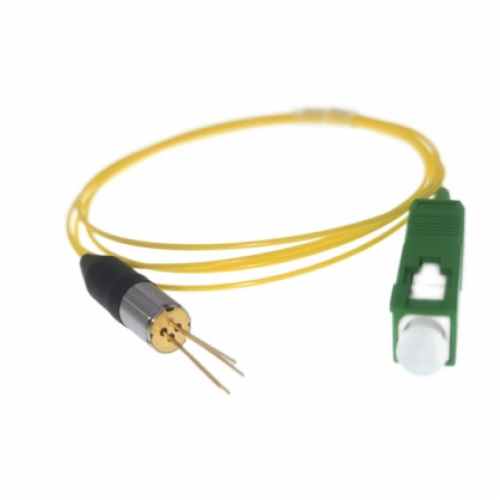

OTDR use pluse 1310 FP transmitter laser diode with PigtailFC/APC connector

Add to Inquiry

Description

Product details

- Type: Laser Diode
- Package Type: Coaxial
- Certification: ISO9001
- Application: CATV

Features
- Uncooled 1310nm DFB MQW Laser Diode
- Wide Operating Temperature Range: -40 ~ +85°C
- Laser Welding Assembly Method
- High Reliability and Long Operation Life
- Connector Types: FC and APC

1. AbsoluteMaximum Ratings

Item	Unit	Min	Max	Note
Forward Current for LD	mA	--	150
Reverse Voltage for LD	V	--	2
Forward Current for MPD	mA	--	1
Reverse Voltage for MPD	V	--	6
Operating Temp	°C	-40	85
Storage Temperature	°C	-40	85
Storage Relative Humidity	%	--	85
Solder Reflow Temperature	°C	--	260	(*1)

(*1): For soldering by iron and 10 seconds on leads

2.Electro-Optical Characteristics (TC=25°C)

Item	Symbol	Test Condition	Min.	Typ.	Max.	Unit
Threshold Current	Ith	CW	--	10	13	mA
Optical Output Power (*2)	Pf	CW,If=30mA	4.25	--	--	mW
Forward Voltage	Vf	CW,If=30mA	--	1.1	1.5	V
Central Wavelength	lc	CW,If=30mA	1290	1310	1330	nm
Spectrum Width (RMS)	Dl	CW,If=30mA	--	--	3.0	nm
Monitor Current	Im	CW,If=30mA,Vpd= -2V	100	--	800	mA

(*2): Launched into 9/125mm SMF, measured with a master plug and an extra receptacle

3.Pigtail Fiber Characteristics

Parameter	Symbol	Min.	Typ.	Max.	Unit	Note
Mode Field Diameter		8	9	10	mm
Gladding Diameter		123	125	127	mm	FC/APC connector
Fiber BendingRadius		30	--	--	mm
Fiber Diameter		0.8	0.9	1.0	mm	Blue
Fiber Length		1350	1400	1450	mm	L
Tension Force on Pigtail Fiber		5	--	--	N

4.Dimension Outline
