Pigtail Pin diode photodiode detector

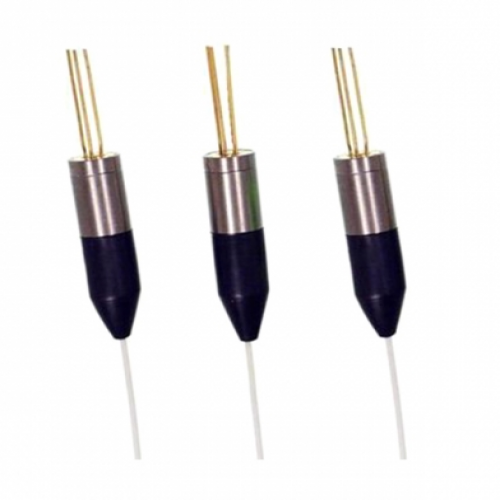

coaxial pigtail photodiode
Item No.: 197
coaxial pigtail photodiode,pigtail photo-diode,pigtail PD
Description
Product details
Model Number:DTNTPD
Type:Variable Capacitance Diode
Package Type:coaxial package
Type:Variable Capacitance Diode
Package Type:coaxial package
Features
- Built-in InGaAs PD Monit
- High-Speed Operation: 1.25/2.5Gbps
- Laser Welding Assembly Method
- High Reliability and Long Operation Life
- Various Connector Type: SC,FC,ST,LC,MU
Application
- Receiver Module
- Data Communication
- Telecommunication
- Gigabit Ethernet
Supply Ability
50K PCS/Month
Packaging Details
Pack in static electricity package and than carton box.
Note: 1testing humidity is 25
2when operate in pulse situation, there isnt exceeding to Max. driving current.
- Built-in InGaAs PD Monit
- High-Speed Operation: 1.25/2.5Gbps
- Laser Welding Assembly Method
- High Reliability and Long Operation Life
- Various Connector Type: SC,FC,ST,LC,MU
Application
- Receiver Module
- Data Communication
- Telecommunication
- Gigabit Ethernet
Supply Ability
50K PCS/Month
Packaging Details
Pack in static electricity package and than carton box.
Absolute Maximum Rating
| parameter | symbol | limiting value | unit |
| LD Forward current | If(LD) | Ith+40DC 2 | mA |
| LD Reverse voltage | Vr(LD) | 2 | V |
| PD Operating current | If(PD) | 2 | mA |
| PD Reverse voltage | Vr(PD) | 20 | V |
| Operating temperature | Topr | -20+65 | |
| Storage temperature | Tstg | -40+85 | |
| Lead soldering temperature/ time | Tsld | 260/10 | /s |
Technical parameters
| Parameter | symbol | min | type | max | unit | Test conduction |
| Optical output power | P0 | 2.5 | mW | If=Ith+20mA | ||
| Threshold current | Ith | 10 | mA | CW | ||
| operation current | If | 40 | mA | CW | ||
| Operation voltage | Vop | 1.1 | 1.5 | V | If =IOP | |
| Spectral width | λ | 0.1 | 1 | nm | CW,P0 | |
| Central wavelength | λc | 1625 | nm | If =IOP | ||
| Rise time/fall time10-90% | Tr/Tf | 0.3 | 0.5 | ns | If =I | |
| Monitor current | Im | 0.3 | mA | If =IOP | ||
| PD terminal capacitance | CPD | 10 | pF | If =I | ||
| Side mode suppression ratio | SMSR | 30 | dB | |||
| Cut-off frequency | fc | 1.25/2.5 | GHz |
Note: 1testing humidity is 25
2when operate in pulse situation, there isnt exceeding to Max. driving current.
