Tap-PD detector with fiber pigtial of InGaAs PD SM single mode

Item No.: 196

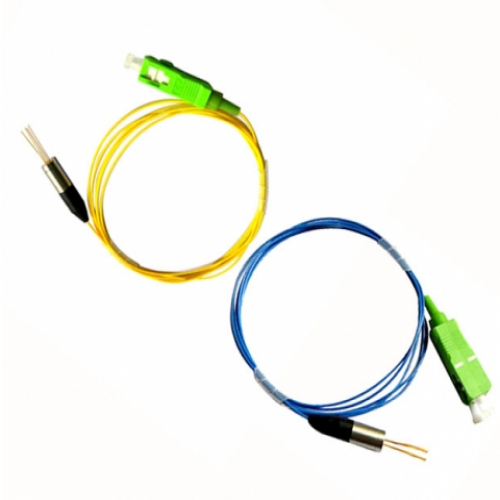

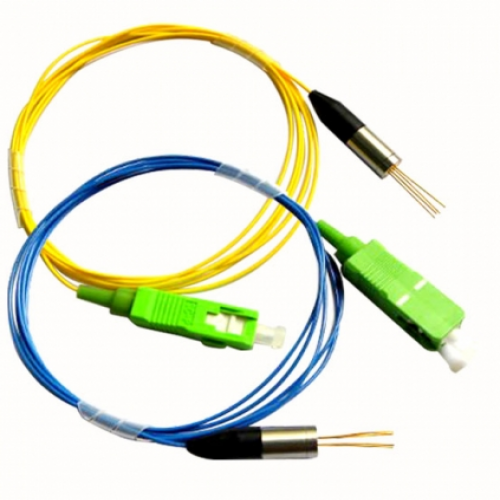

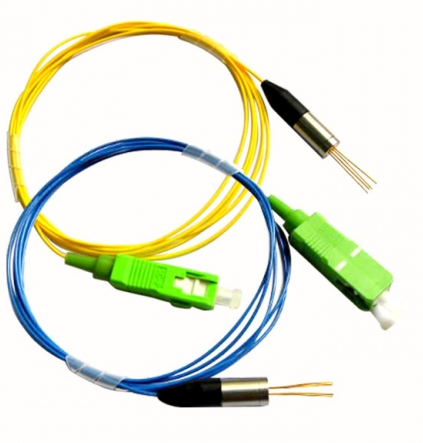

Tap-PD(Photodiode) detector with fiber pigtialInGaAs PD SM single mode (Φ0.25mm bare fiber/0.9mm loose tube fiber) TO46 Φ5.6*L27mm

Add to Inquiry

Description

Tap-PD(Photodiode) detector with fiber pigtial

Product details
- Place of Origin:China
- Certification:RoHS

Features
- InGaAs PIN photodiode ,Low dark current
- Compact package，Low insertion loss

Application
- Optical fiber sensors,Optical test instrumentation
- FTTH , Communications systems

Absolute Maximum ratings

Parameter	Symbol	Min	Max	Unit
Forward current	If	—	10	mA
Reverse voltage	Vr	—	20	V
Operating temperature	Top	－5	+70	℃
Storage temperature	Tstg	－40	+85	℃
Solder Temperature	TS	—	260	℃
Soldering time	—	—	10	s

Recommended Operating Conditions

Parameter	Symbol	Min	Type	Max	Unit
Case Operating Temperature Range	Tc	－5	+25	+70	℃
Operating voltage	Vcc	-24	-5	—	V

Optical and Electrical Characteristics(Tc=25℃)

Parameter	Symbol	Min.	Type	Max.	Unit	Test condition
Pass Channel Wavelength Range	λ	1260		1625	nm
Responsivity 1% 2% 5% 10%	R	7 14 35 70		12 24 65 120	mA/W
Polarization Dependent Loss	PDL			0.1	dB
Return loss	RL	45			dB
Insert loss（COM- Reflect） 1% 2% 5% 10%	IL		0.2 0.4 0.6 0.9	0.4 0.6 0.9 1.2	dB
Input Power Range				200	mW
Fibre type						SMF-28e (Φ0.25mm bare fiber/Φ0.9mm loose fiber)
ESD				500	V
Dark Current	Id			1	nA

Pin Description and Package Dimensions

Φ0.25mm bare fiber

Φ0.9mm loose fiber

Packing Specification
- The specifications of the Antistatic boxes:320*220*15mm
- The specifications of the box：335mm*240mm*60mm
- The specifications of the Carton：485mm*345mm*260mm
- Number of packages：14pcs/Antistatic boxes，70 pcs(5 base 1 cap)/boxes，560 pcs(8 box)/Cartons
