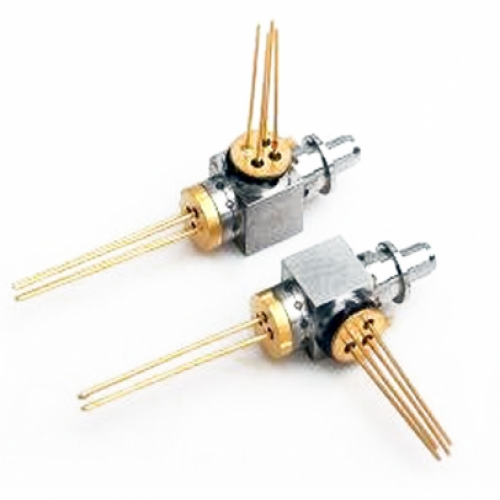

Pigtail Pin diode photodiode detector
Fiber optic pin diode, photo diode, photodiode detector,pindetector with coaxial pigtail
Item No.: 194
Fiber optic pin diode, photo diode, photodiode detector,pindetector with coaxial pigtail
Description
Fiber optic pin diode, photo diode, photodiode detector,pindetector with coaxial pigtail
Product details
Type: Photo Diode
Package Type:Through Hole
Description
- Low dark current
- Responsivity: 0.88A/W
- cut-off frequency: 1.25G or 2.5G
Type: Photo Diode
Package Type:Through Hole
Description
- Low dark current
- Responsivity: 0.88A/W
- cut-off frequency: 1.25G or 2.5G
Specification
Parameter | Rating |
Max. Forward Voltage | 2V |
Max. Reverse Voltage | 20V |
Max. Forward Current | 2mA |
Max. Reverse Current | 2mA |
Colour | white, yellow, blue |
Features
- Low Capacitance: ≤1pF
- 2GHz Frequency Response
- Low Dark Current, Low Back Reflection
- High Responsivity: ≥0.85A/W 1310nm ≥0.90A/W 1550nm
- Laser Welding, Coaxial Package
- High Reliability and Long Operation Life
- Various Connector Type: FC,SC,ST,LC,MU
Application
- CATV Forward/Return Path
- QAM 64/256 System
- PON
- FTTH Network
- EDFA Monitors
- CATV, CDMA optic transmission, monitor transmission
Supply Ability
50K PCS/Month
Packaging Details
Pin package, static electricity package, 10PC/box, carton box just according to your quantity.
