High Saturation pin diode Photodiode detector With Receptacle for telecommunication
Item No.: 193

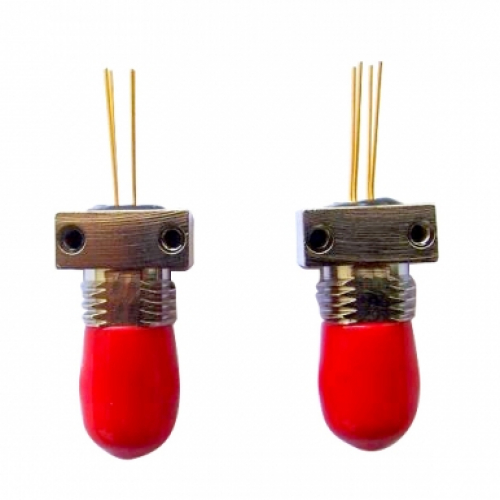

High Saturation Photodiode With Receptacle for telecommunication
Description
High Saturation Photodiode With Receptacle for telecommunication
Product detail
Type: Photo Diode
Package Type:Through Hole
Specification
Technical parameters:(T=25℃)
Type: Photo Diode
Package Type:Through Hole
Specification
| Parameter | Rating |
| Max. Forward Voltage | 2V |
| Max. Reverse Voltage | 20V |
| Max. Forward Current | 2mA |
| Max. Reverse Current | 2mA |
| Colour | Red |
Technical parameters:(T=25℃)
| Parameter | Symbol | Unit | Testing condition | Mix | Typ. | Max. |
| Wavelength range | λ | nm | 650 | 1650 | ||
| Dark current | Id | nA | Vr=-5V 25°C | 0.2 | 1 | |
| Responsively | R | A/W | Vr=-5V,λ=1310nm | 0.80 | ||
| Photo Sensitive Diameter | Φ | μm | 300 | 1000 | ||
| Saturation optical power | P | dBm | Vr=-5 | 26 | ||
| Response time | tr/tf | ns | RL=50Ω | 0.1 | ||
| capacitance | C | pF | Vr=-5V | 0.75 | ||
| Transmitting rate | fc | Gb/s | 1 |
Features
- Low dark current,high reliability, high linearity
- Receive light sensitive optional
- High saturation power(10dBm,20dBm,23dBm,30dBm etc)
- Good identity for interface and receptacle
- Long Operation Life:5 years
Application
- Apply to vary power meter & instrument
- Apply to optical receiver for special require
- Technical parameters(T=25°C)
Product standard:
- Match the ROSH standard
- Match the ReACH standard
Supply Ability
6KK PCS/Month
Packaging Details
Pack in static electricity packagge
