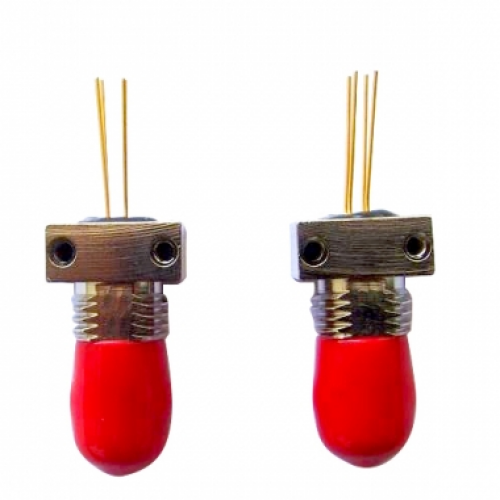

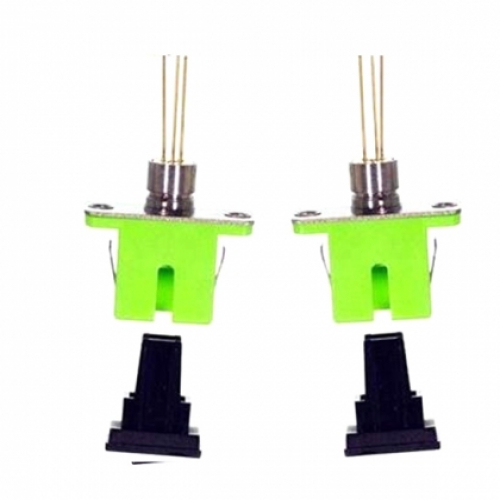

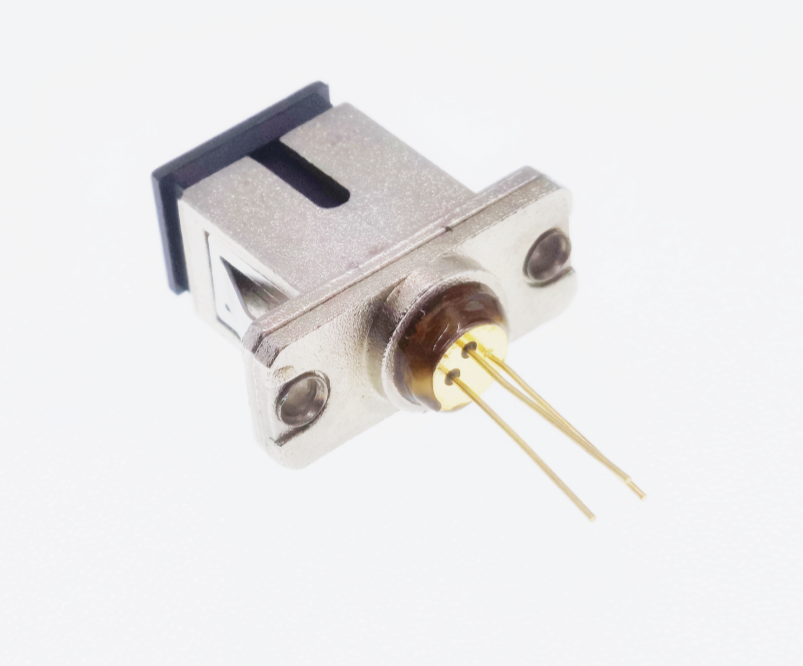

6G photodiode or avalanche photo diode with receptacle Pin-diode

Item No.: 185

Analog High saturation photodiode with receptacle Pin-diode

Add to Inquiry

Description

Product details

Type:Photo Diode
Package Type:Receptacle or pigtail

Description
Coaxial plug-in large photosurface photodiode, high saturation response current, multiple interfaces available.

**specification**
Parameter	Rating
Max.Forward Voltage	2V
Max.Reverse Voltage	20V
Max.Forward Voltage	2mA
Max.Reverse Voltage	2mA
Wavelength	650-1650

Features
- Low dark current,high reliability, high linearity
- Receive light sensitive optional
- High saturation power10dBm 20dBm 23dBm 30dBm etc
- Good identity for interface and receptacle

Absolute Maximum Ratings

Item	Unit	Min	Max	Note
Forward current	mA		10.0	If
Reverser voltage	V		20	Vr
Operating temperature	℃	-40	+85	Top
Storage temperature	℃	-40	+85	Tstg

Transmitter Electro-Optical Characteristics (TC=25CW)

Item	Symbol	Test Condition	Min.	Typ.	Max.	Unit.
Optical Wavelength Range	λ		650		1650
Responsivity	R	VR=5λ=1310nm	0.83	0.87		A/W
Responsivity	R	VR=5λ=1310nm	0.85	0.9		A/W
Saturated optical power	Ps	VR=5				dBm
Dar Current	ld	VR=5			15	nA
Capacitance	C	VR=5 F=1MHZ			0.75	pF
Photosensitive surface diameter	φ			75		um

Pin Assignment

Dimension Outline

Application
- Apply to vary power meter & instrument
- Apply to optical receiver for special require
- Product Standards
- Meet the GR-468 reliability test standard
- RoHS compliant
- General requirements for GR-326 single mode optical connectors and jumpers
- Absolute Maximum Ratings

Supply Ability
100K PCS/Month

Packaging Details
Pack in static electricity package

Packaging
- Single package size: 46X31X29 cm
- Single gross weight:5.0 kg
- Package Type:
The outer box specification is 460*305*290mm, and each box can hold up to 640 products. 80 products are packed in 8 stacked; 8 anti-static trays can be loaded into 80 products
